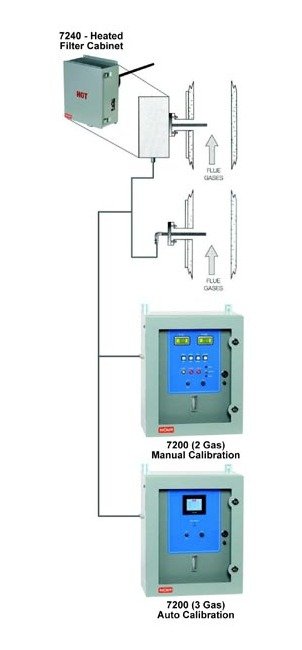

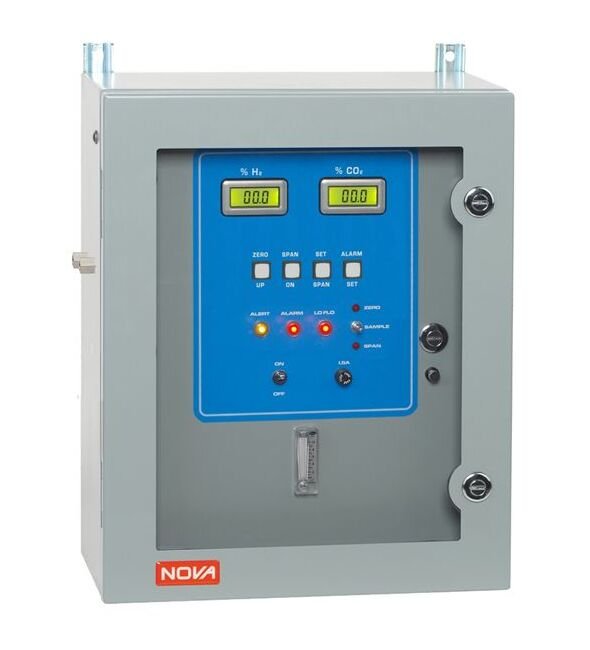

The Nova Model 7200 Series of flue gas analyzers are specifically designed for use on flue gases from combustion processes burning gaseous fuels. The 7200 series analyzers can measure sample gases for oil or coal fired processes with the addition of a Model 7240 heated sample filter. The 7200 can also measure flue gases in the presence of acidic or corrosive samples through the use of sample pre-conditioners.Sample gas is drawn into the analyzer from the sampling probe heated filter or sample pre-conditioner, then pumped through a condensate removal system. Any condensate formed is collected then automatically purged. Next, the dried sample gas is filtered again, then flows through a pressure regulator, PTFE liquid blocker, calibration gas valves, low flow switch, flow meter then on to the gas detectors. An optional vacuum switch at the pump inlet warns if the pre-filter is becoming plugged up.The 7200 Series analyzers are available in any combination of O2, CO, CO2, NOx (as NO or NO + NO2), SO2, or combustibles, with separate digital readouts and outputs for each. Special sampling probes are available for high temperature applications up to 3200°F (1760°C). The 7200 Series is multi-sample point capable (consult Nova).
Product Specifications
Applications 0
Continuous analysis of flue gas for any combination and range of O2, CO, CO2, SO2, NOx (NO or NO + NO2) or combustibles from combustion processes.
Features 0
Best value continuous flue gas analyzerSensitive infrared detectors for % and > 1000 PPM CO, CO2 or SO2Long life electrochemical sensor for 10-1000 PPM CO, NO, NO2, and SO2Catalytic sensor for % combustiblesFast response time and bright digital readout for each gasMicroprocessor based with push button or potentiometer calibrationEasy to maintain modular layoutSample preparation includes filteration and continuous moisture removal4-20mA outputs for each gas measuredSensors are temperature controlled for maximum stability
Options 0
Hi/Low gas, low flow, high vacuum and diagnostic alarms availableIsolated analog, RS232, MODBUS® and Ethernet outputs availableCabinet purge system available for use in hazardous or high dust areasOne-step 'cal now' button or full auto-calibration with touch screen LCD displayCold weather package for operation to -5°F (-20°C)Cabinet coolers can be fitted to most modelsStack-mounted heated filters and high temperature probesStack temperature readoutOptional sample conditioning includes:Continuous water pre-wash system for acidic fuel gases that are present but not to be analyzed (See Model 7300)Nafion-Tube™ based sample dryer for high accuracy analysis of acidic samples, where NO2 or SO2 are to be measuredHeated stack filter for removal of dust from high particulate samples (Model 7240), automatic blowback availableCalibration gas injected at heated stack filterMultiple sample point sequencer which allows multiple samples to be selected and analyzed (See Model 402AS)
Specifications Accuracy Repeatability
±1-2% of full scale - depending on gas measured and range
Specifications Alarms
High or low alarm contacts available for all gases and low flow
Specifications Ambient Temperature Range
32 to 122°F (0 to 50°C) @ 5-95% RH non-condensing. Lower temperatures (-5°F, -20°C) with Cold Weather Package. ºC
Specifications Code Numbers For Gases Measured
O2 by electrochemical sensor
Specifications Display Type
D1 - LED display (s) - Manual potentiometer calibration | D2 - LED display (s) - Manual push-button calibration | D3 - Microprocessor controller with single graphic display. Allows auto sequencing, RS-485 output, 'CAL NOW' and one-step | D4 - Same as D3 but with full auto-calibration
Specifications Drift
Less than 2% of full scale per month
Specifications Industry Type
Flue Gas or Emissions
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
% O2 by zirconia sensor when applicable | % O2, 10-1000 PPM NO, NO2 CO and SO2 by electrochemical sensor | CO2 >1000 PPM, % CO and SO2 by infrared detector | Combustibles by catalytic combustibles detector with air 'make-up' system | High accuracy % O2 by paramagnetic sensor
Specifications Output Options
OP1 - 4-20 mA non-isolated | OP2 - 4-20 mA isolated | OP3 - 0-5 V | OP4 - 0-10 V | OP5 - RS-485 | OP6 - Modbus
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Primary Gas To Be Measured
Oxygen (O2)
Specifications Ranges Available
0-100 PPM to 0-5% SO2 | 0-100 to 0-100% CO | 0-100 to 0-5000 PPM NO | 0-100 to 0-800 PPM NO2 | 0-2, 0-5, 0-10% Combustibles | 0-20% CO2 | 0-5 to 0-25% O2
Specifications Resolution
0.1% on %, 1 PPM on PPM
Specifications Response Time T 90
20-30 seconds to 90% of step change
Specifications Sample Points
1 Sample point (no sequencing)
Specifications Sampling System
Std SS probe with unheated pre-filter (Std. probe 3/8" O.D. x 18") (9.5 x 460 mm)
Specifications Size Weight
Dimensions and weight will vary with configurations selected
Specifications Unique Applications
All Nova analyzers are built using proven technologies and techniques.
