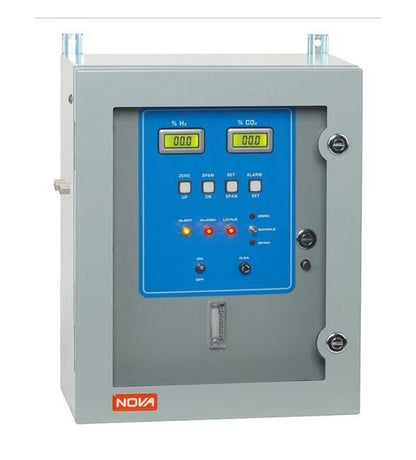

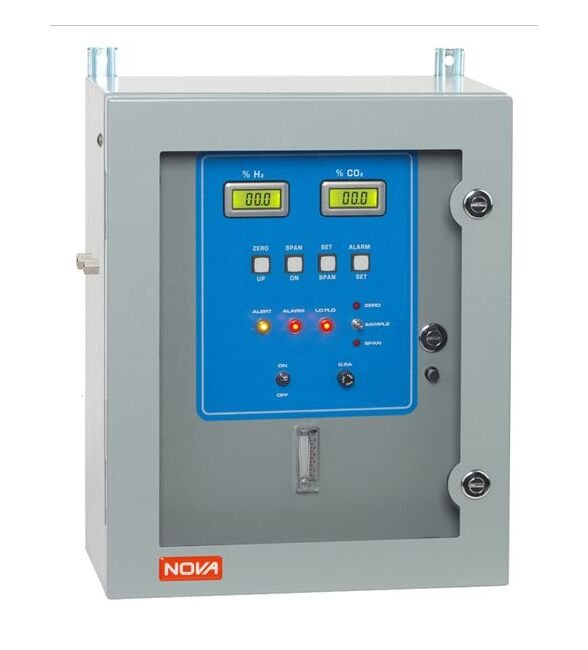

The Nova 7900 Series Heat Treat Analyzer System utilizes high stability infrared detectors for the simultaneous measurement of CO, CO2, and CH4. In addition, the analyzer can also be supplied with a non-consumable, long life thermal conductivity cell for hydrogen that is compensated for the interference effects of CO, CO2, and CH4. This ensures that Hydrogen will always read correctly regardless of the background gas composition. A long life electrochemical sensor is used for PPM or % O2 analysis. In most cases, sensors are installed in a temperature controlled box to improve reading accuracy. All detected gases have a separate digital readout and linear recorder output. Various versions available for either exothermic or endothermic mixtures, or for other industrial process gases.
Product Specifications
Applications 0
For continuous monitoring of any combination of heat treat atmosphere gases such as Oxygen (O2), Methane (CH4), Carbon Dioxide (CO2), Carbon Monoxide (CO), Hydrogen (H2), Ammonia (NH3), and Dew Point (standard and low ranges). Also available for other industrial process gases.
Calibration 0
Ambient air for O2 span and other gases zeroAnalyzed calibration gas with representative concentrations of non-O2 gases for span
Features 0
Best value multi-gas analyzer including hydrogenSensitive infrared detectors for CO, CO2, CH4, and NH3 temperature controlled where necessary to reduce driftThermal conductivity detector for hydrogenLong life (2-5 years) electrochemical oxygen sensor, PPM and % ranges availableDielectric ceramic sensor for standard or low range dew pointBright digital display for each gasBuilt in sample pump or pressure regulatorMicroprocessor for push button calibrationEasy to maintain modular layout
Options 0
Hi/Low gas, low flow, and diagnostic alarms availableIsolated analog, RS232, RS485, MODBUS, and Ethernet outputs availableSample conditioning systems available for removal of moisture, acidic gas, and dustCabinet purge system available for use in hazardous areasOne-step 'cal-now' button with touch screen LCD displayFull automatic calibration with touch screen LCD displayCold weather package for operation to -5°F (-20°C)Cabinet coolers can be fitted to most modelsHigh temperature filters and probesSensors mounted in temperature controlled heated box to improve accuracy
Specifications Accuracy Repeatability
±1% of full scale on all gases
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
32 to 122°F (0 to 50°C), Lower temperatures (-5°F, -20°C) with Cold Weather Package
Specifications Drift
Less than 2% of full scale per month
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
Dielectric ceramic sensor for Dew Point | Electrochemical sensor for O2 | NDIR infrared detector for CO, CO2, CH4 & NH3 | Thermal conductivity cell for H2
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20 mA, RS232, RS485, MODBUS, Ethernet outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-10%, 0-100.0% CH4 | 0-100% NH3 | 0-10000 PPM, 0-50.0% O2 | 0-2.00%, 0-100.0% CO2 | 0-20.0%, 0-100.0% CO | 0-40.0%, 0-100.0% H2 | -10 to 80°F (-23 to 26°C), 48 to 68°F (-100 to 20°C) D.P.
Specifications Resolution
0.1%, 1 PPM, 1°F (Dew Point)
Specifications Response Time T 90
20-30 seconds to 90% step change
Specifications Size Weight
Physical data will vary depending on model and enclosure required
Specifications Unique Applications
Special models of the 7900 Series analyzers can be supplied with options such as free standing cabinets, built-in moisture removal systems, cabinet coolers, controllers, hi/low alarms, low flow alarm, 4-20 mA outputs, recorders, etc. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
