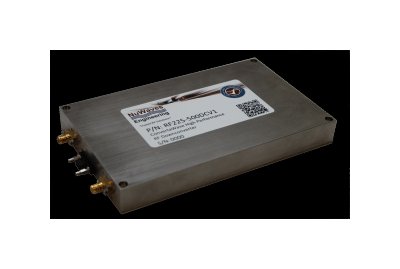

The ConvertaWave™ model RF225-500DCV1, is a robust RF downconverter, providing high dynamic range performance over the 225-500 MHz frequency range. Please reach out to our business development team to request a data sheet. The 70 MHz IF output is band-limited to 500 kHz. The downconverter provides superior rejection of out of band signals, Automatic Gain Control (AGC) / Manual Gain Control (MGC) operation, and operates over VHF and UHF frequencies in 100 kHz steps. The ConvertaWave has extremely low noise figure and user selectable features. The ConvertaWave has over 100 dB of manual gain control, inclusive of an automatic gain control (AGC) mode. Boasting a system noise figure under 5 dB and a local oscillator (LO) with extremely low phase noise, the ConvertaWave is well suited for industrial, commercial, and military applications. Demo units available to qualified customers.
Product Specifications
Specifications Ambient Operating Temperature
-20 to +50 ºC
Specifications Export Classification
ITAR Controlled
Specifications If Bandwidths
0.5 MHz
Specifications If Output
70 MHz
Specifications If Rejection Typ
80 dB
Specifications Maximum Frequency
500 MHz
Specifications Maximum Supply Voltage Vdc
18
Specifications Minimum Frequency
225 MHz
Specifications Minimum Supply Voltage Vdc
10
Specifications Size Lx W X H
6.50 x 4.00 x 0.75 Inch
Specifications Tuning Resolution
100 kHz
