Copper Bar Expansion Section with Splice Installed
Copper Bar Expansion Section with Splice Installed
SKU:CRA-4e41af
Manage thermal expansion effectively with our Copper Bar Expansion Section - Ensure system longevity and safety. Amperage Rating: 250A. Weight: 8.9 lb.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Copper Bar Expansion Section with Splice Installed
$299.99
Quantity: 1
Claim Your Seller Account
Copper Bar Expansion Section with Splice Installed
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

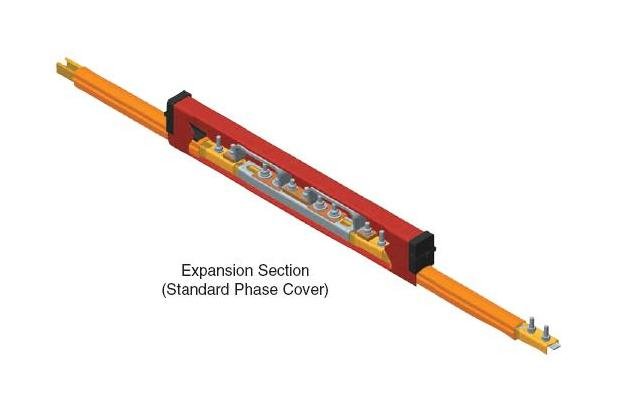

The Copper Bar Expansion Section with Splice Installed is a vital component for accommodating thermal expansion/contraction in conductor bar systems exceeding 492 ft. (150 m). With a maximum 2.0" (50 mm) gap, this 14' 9" (4.5 m) Expansion Section seamlessly integrates into existing setups, ensuring optimal performance and longevity. Constructed from high-quality copper, it boasts an Amperage Rating of 250 A, a Standard Ground Cover for safety, and a lightweight design at 8.9 lb (4 kg). Perfect for crane control and electrification, this Expansion Section meets stringent industry requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Amperage Rating
250 A
Specifications Cover Type
Standard Ground Cover (Green)
Specifications Material
Copper
Specifications Weight
8.9 lb | 4 kg
