Copper Bar Expansion Section with Splice Installed
Copper Bar Expansion Section with Splice Installed
SKU:CRA-cbc771
Durable Copper Bar Expansion Section for thermal expansion joints, 160A Amperage Rating
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Copper Bar Expansion Section with Splice Installed
$299.99
Quantity: 1
Claim Your Seller Account
Copper Bar Expansion Section with Splice Installed
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

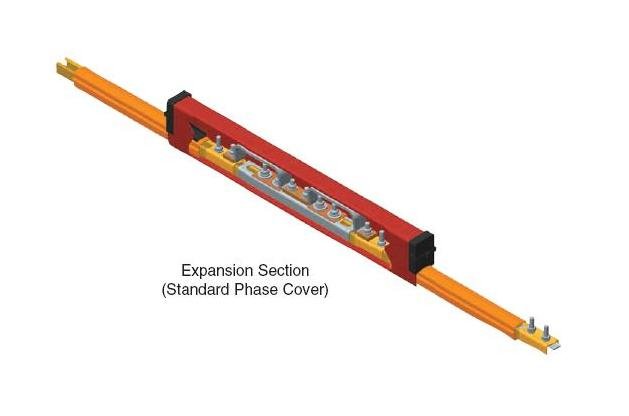

The Copper Bar Expansion Section with Splice Installed is designed for use at structural expansion joints and in systems exceeding 492 ft. (150 m) to accommodate thermal expansion and contraction. With a maximum gap of 2.0" (50 mm), this 14' 9" (4.5 m) long section seamlessly replaces a length of conductor bar. Made of durable copper, it features an Amperage Rating of 160 A, UV Stable (Black) cover, and weighs 7.5 lb (3.4 kg). Ideal for crane control and electrification applications requiring reliable and safe conductor bar systems.
Product Specifications
Specifications Amperage Rating
160 A
Specifications Cover Type
UV Stable (Black)
Specifications Material
Copper
Specifications Weight
7.5 lb | 3.4 kg
