Copper Bar Expansion Section with Splice - Thermal Expansion Control
Copper Bar Expansion Section with Splice - Thermal Expansion Control
SKU:CRA-66fb7f
Efficiently manage thermal expansion/contraction with our Copper Bar Expansion Section. Amperage Rating: 400A, Cover: Medium Heat, Weight: 10.6lb
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Copper Bar Expansion Section with Splice - Thermal Expansion Control
$249.99
Quantity: 1
Claim Your Seller Account
Copper Bar Expansion Section with Splice - Thermal Expansion Control
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

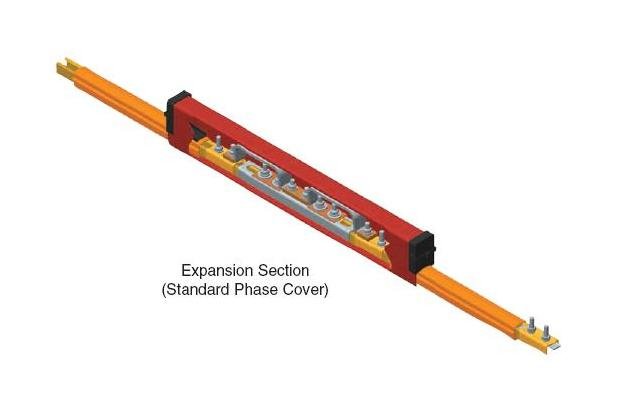

The Copper Bar Expansion Section with Splice is designed to manage thermal expansion and contraction at structural joints in conductor bar systems exceeding 492 ft (150 m). With a 2.0" (50 mm) gap tolerance, this 14' 9" (4.5 m) section efficiently replaces a length of conductor bar. Featuring an Amperage Rating of 400 A, a Medium Heat Cover for durability, and weighing 10.6 lb (4.8 kg), this copper component ensures seamless electrical continuity and safety in crane control applications.
Product Specifications
Specifications Amperage Rating
400 A
Specifications Cover Type
Medium Heat Cover (Red)
Specifications Material
Copper
Specifications Weight
10.6 lb | 4.8 kg
