Copper Clamp Power Feed for Conductor Bars
Copper Clamp Power Feed for Conductor Bars
SKU:CRA-44a64c
Efficiently attach incoming power to conductor rails with our Copper Clamp Power Feed for reliable performance and easy installation.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Copper Clamp Power Feed for Conductor Bars
$89.99
Quantity: 1
Claim Your Seller Account
Copper Clamp Power Feed for Conductor Bars
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

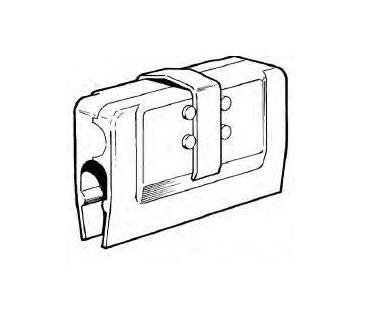

The Copper Clamp Power Feed is a vital component for connecting incoming power to conductor rails with precision and efficiency. Crafted from high-quality copper with stainless hardware, this power feed features a NEMA standard four-hole stub and case feed wires up to 500MCM. With an impressive amperage rating of 500 A and a maximum temperature resistance of 400 °F, it ensures reliable and safe power transmission. Weighing just 2.60 lb, its fully insulated design and simple clamp mechanism make installation effortless, suitable for various locations within the system. Trust the Copper Clamp Power Feed for exceptional performance and seamless power distribution in crane control and electrification applications.
Product Specifications
Specifications Amperage Rating
500 A
Specifications Description

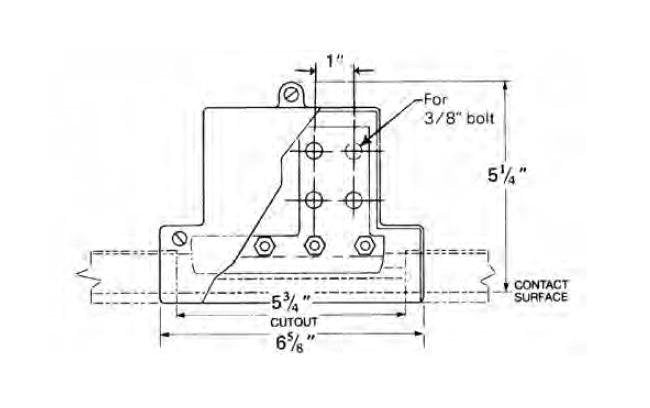

copper clamp with NEMA standard four-hole stub and casefeed wires to 500MCM
Specifications Material
Copper (Stainless Hardware)
Specifications Maximum Temperature
400 ºF
Specifications Weight
2.60 lb
