Copper Conductor Bars with Splice Installed - 160A, 600V
Copper Conductor Bars with Splice Installed - 160A, 600V
SKU:CRA-744b53
Reliable Copper Conductor Bars with Splice - 160A Amperage, 600V Max System Voltage. Ideal for Crane Control Systems.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Copper Conductor Bars with Splice Installed - 160A, 600V
$299.99
Quantity: 1
Claim Your Seller Account
Copper Conductor Bars with Splice Installed - 160A, 600V
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your Crane Control & Electrification system with our Copper Conductor Bars featuring a 160A amperage rating, standard phase cover, and PVC cover material. With a robust copper construction and impressive resistance and impedance values, these conductor bars ensure reliable power distribution. Measuring 4.5m in length and meeting stringent safety standards like Self-Extinguishing Flame Test, these bars are ideal for industrial applications requiring high-performance electrical conductivity.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
160 ºF | 71.1 ºC
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
160 A

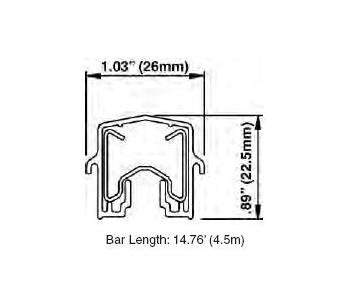

Specifications Bar Length
4.5 m

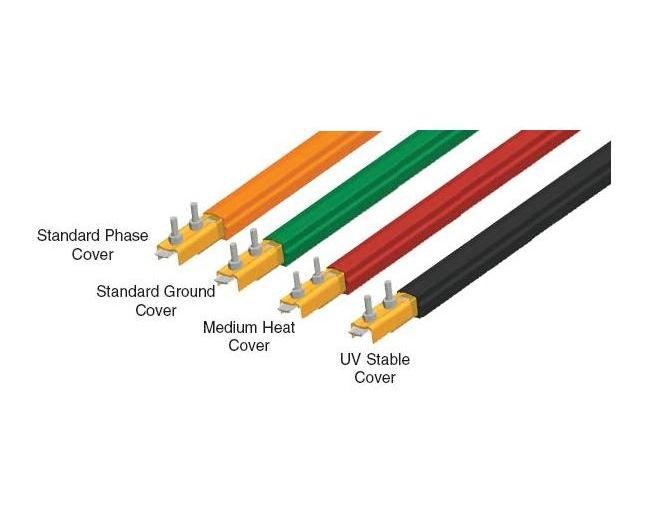

Specifications Cover Type
Standard Phase Cover (Orange)
Specifications Cross Sectional Area
50 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000364 Ω/m
Specifications Material
Copper
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
160 A
Specifications Resistance R For Dc At 20 C
0.000342 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
6.2 lb | 2.8 kg
