Copper Conductor Bars with Splice Installed - 250A, Red Medium Heat Cover

Name: Copper Conductor Bars with Splice Installed - 250A, Red Medium Heat Cover
Brand: Clutch Engineering
SKU: CRA-bf509b
Price: 349.99 USD
Availability: OutOfStock

SKU:CRA-bf509b

Reliable Copper Conductor Bars for efficient crane control; 250A, 63 mm², UL-listed for 600V, with red heat-resistant cover.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Copper Conductor Bars with Splice Installed are designed for reliable crane control & electrification needs. With an amperage rating of 250A and a cross-sectional area of 63 mm², these bars ensure efficient power distribution. The medium heat cover in red provides safety and durability. Compliant with UL listing for 600V AC/DC, these bars also feature low resistance and impedance values, enhancing performance. With a robust polycarbonate cover material and self-extinguishing properties, our conductor bars meet high dielectric strength and flame resistance standards. Ideal for demanding environments, these bars are a trusted choice for industrial applications.

Product Specifications

Cover Specifications Cover Material

Polycarbonate

Cover Specifications Dielectric Strength

240 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

24%

Cover Specifications Specific Density

1.15 g/cmÂ³

Cover Specifications Surface Resistivity

>1014 Î©

Cover Specifications Vicat Softening Temperature

250 ÂºF | 121.1 ÂºC

Cover Specifications Volume Resistivity

>1016 Î©/cm

Specifications Amperage Rating

250 A

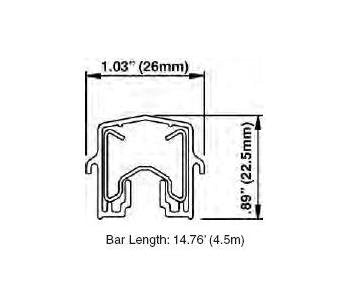

Specifications Bar Length

4.5 m

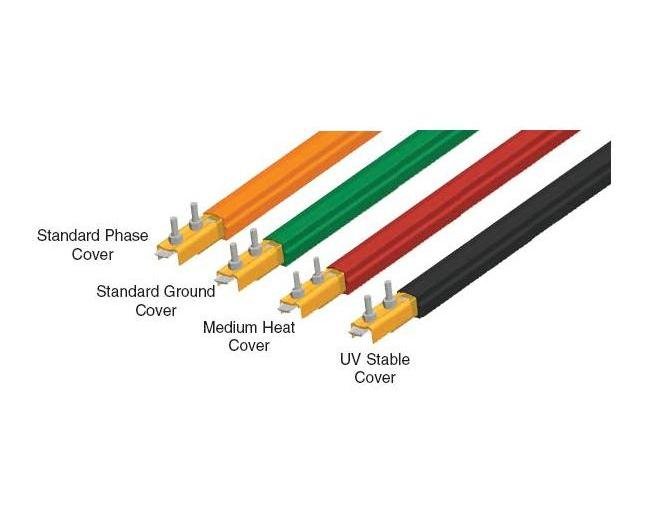

Specifications Cover Type

Medium Heat Cover (Red)

Specifications Cross Sectional Area

63 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.000300 Î©/m

Specifications Material

Copper

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

250 A

Specifications Resistance R For Dc At 20 C

0.000274 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

6.8 lb | 3.1 kg
