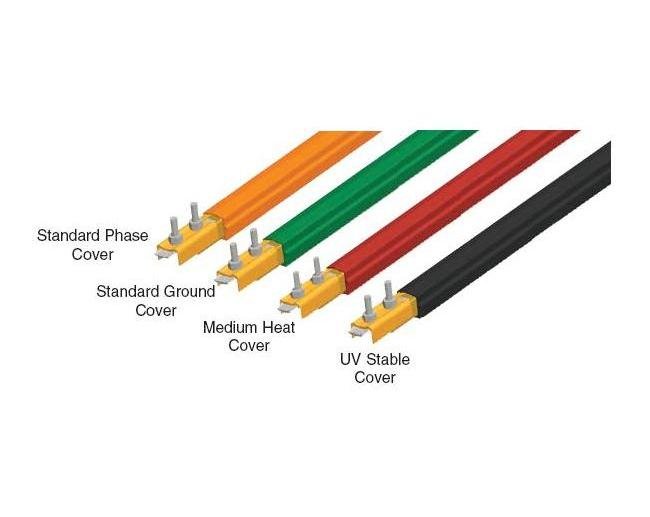

Copper Conductor Bars with Splice Installed - 250A, UV Stable Cover

Name: Copper Conductor Bars with Splice Installed - 250A, UV Stable Cover
Brand: Clutch Engineering
SKU: CRA-90069e
Price: 159.99 USD
Availability: OutOfStock

SKU:CRA-90069e

Upgrade your crane control with our reliable 250A Copper Conductor Bars with UV Stable Cover. Efficient power distribution for safety and performance.

$159.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your crane control system with our Copper Conductor Bars with Splice Installed. Rated for 250A with UV Stable (Black) cover, these bars ensure reliable power distribution. Featuring a Cross Sectional Area of 63 mm² and a Maximum System Voltage of 600V AC/DC, our bars offer low resistance and impedance for efficient operation. With a durable PVC cover meeting industry safety standards, these bars are designed for a maximum ambient temperature of 25°C. The Copper material ensures longevity and conductivity, while the self-extinguishing Flame Test and high dielectric strength guarantee safety.

Product Specifications

Cover Specifications Cover Material

PVC

Cover Specifications Dielectric Strength

180 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

54%

Cover Specifications Specific Density

1.5 g/cmÂ³

Cover Specifications Surface Resistivity

1011 Î©

Cover Specifications Vicat Softening Temperature

160 ÂºF | 71.1 ÂºC

Cover Specifications Volume Resistivity

>1015 Î©/cm

Specifications Amperage Rating

250 A

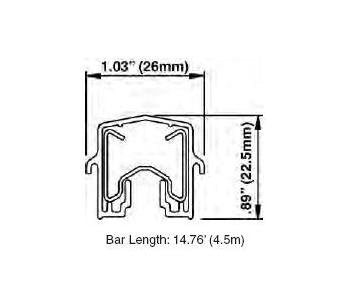

Specifications Bar Length

4.5 m

Specifications Cover Type

UV Stable (Black)

Specifications Cross Sectional Area

63 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.000300 Î©/m

Specifications Material

Copper

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

250 A

Specifications Resistance R For Dc At 20 C

0.000274 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

6.8 lb | 3.1 kg
