Copper E-Beam Liner - 7 cm³ Size (RDM-EB4 Series)
Copper E-Beam Liner - 7 cm³ Size (RDM-EB4 Series)
SKU:RDM-166d63
High-quality 7 cm³ Copper E-Beam Liner for precise E-Beam applications. Custom sizes available. Bulk discounts offered.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Copper E-Beam Liner - 7 cm³ Size (RDM-EB4 Series)
$24.99
Quantity: 1
Claim Your Seller Account
Copper E-Beam Liner - 7 cm³ Size (RDM-EB4 Series)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

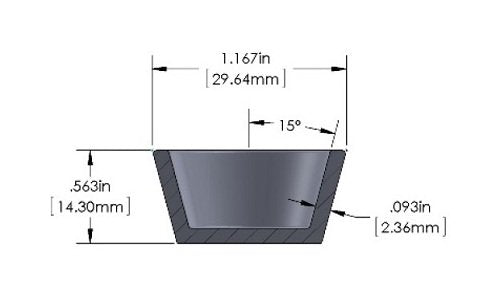

The Copper E-Beam Liner in 7 cm³ size by R. D. Mathis Company is a precision-engineered Crucible Container Liner made of high-quality copper. With dimensions of 0.563 inches in height, 1.167 inches in width, and a 15º angle, this liner boasts a wall thickness of 0.093 inches. Its superior material ensures excellent thermal conductivity and durability, ideal for E-Beam applications. Custom sizes available upon request. Bulk discounts offered for volume orders.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.563 in | 14.30 mm
Specifications Material
Copper
Specifications Size
7 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
1.167 in | 29.64 mm
