Copper E-Beam Liner - RDM-EB23 Series 7cm³ Crucible
Copper E-Beam Liner - RDM-EB23 Series 7cm³ Crucible
SKU:RDM-84c513
High-quality Copper E-Beam Liner for precise electron beam evaporation processes. Custom sizes available. Volume discounts offered.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
Copper E-Beam Liner - RDM-EB23 Series 7cm³ Crucible
$65.99
Quantity: 1
Claim Your Seller Account
Copper E-Beam Liner - RDM-EB23 Series 7cm³ Crucible
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

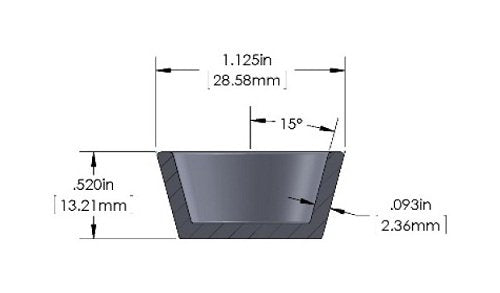

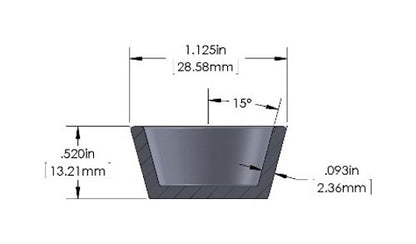

The RDM-EB23 Series 7 Cubic Centimeter (cm³) Copper E-Beam Liner by R. D. Mathis Company offers exceptional quality and precision for electron beam evaporation processes. Constructed from copper, this crucible-type container liner features dimensions of 0.520 inches in height, 1.125 inches in width, with a 15-degree angle and 0.093-inch wall thickness. Suitable for various system integrations, custom sizes are available upon request. With discounts for volume orders, this liner ensures reliable performance and durability in demanding environments.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.520 in | 13.21 mm
Specifications Material
Copper
Specifications Size
7 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
1.125 in | 28.58 mm
