Copper Nickel Inner Flanges - 20 in, DIN 86037
Copper Nickel Inner Flanges - 20 in, DIN 86037
SKU:FLA-4d49ed
High-quality Copper Nickel Inner Flanges - DIN 86037 compliant, 20 in Nominal Size, corrosion-resistant & durable.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Copper Nickel Inner Flanges - 20 in, DIN 86037
$189.99
Quantity: 1
Claim Your Seller Account
Copper Nickel Inner Flanges - 20 in, DIN 86037
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your piping system with high-quality Copper Nickel Inner Flanges. These flanges, designed as per DIN 86037 norms, feature a Nominal Size of 20 in and precise dimensions for optimal performance. The 4.5 mm wall thickness and CuNi10Fe1.6Mn construction ensure durability and corrosion resistance, making them ideal for industrial applications. Weighing 10.70 kg, these Inner Flanges are a reliable choice for projects requiring precision and quality.

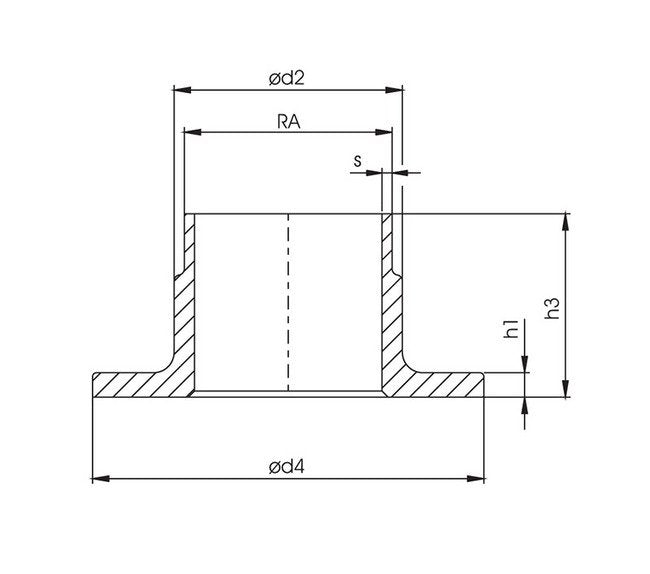

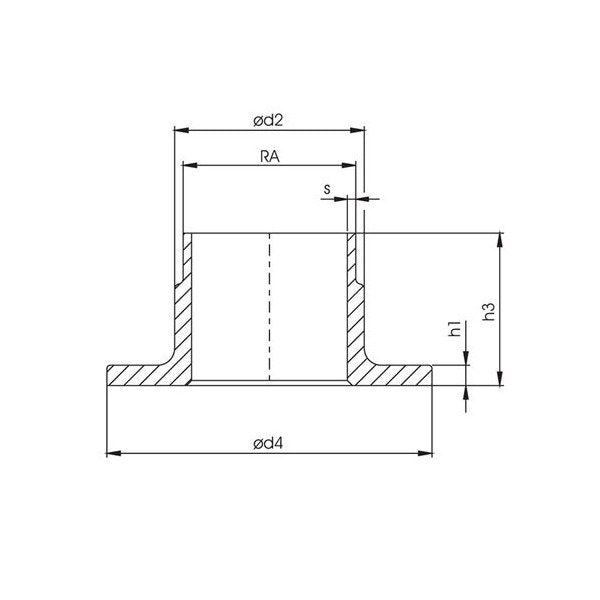

Product Specifications
Specifications Body Material
CuNi10Fe1.6Mn
Specifications D2
511 mm
Specifications D4
585 mm
Specifications H1
12 mm
Specifications H3
50 mm
Specifications Nominal Size
20 in
Specifications Norm
DIN 86037
Specifications Ra Od
508 mm
Specifications S
4.5 mm
Specifications Weight
10.70 kg
