Copper Nickel Inner Flanges - 28in, 6.0mm

Name: Copper Nickel Inner Flanges - 28in, 6.0mm
Brand: World Wide Metric, Inc.
SKU: FLA-31018a
Price: 129.99 USD
Availability: OutOfStock

SKU:FLA-31018a

Premium Copper Nickel Inner Flanges - DIN 86037 compliant, 28in size, 6.0mm thickness

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

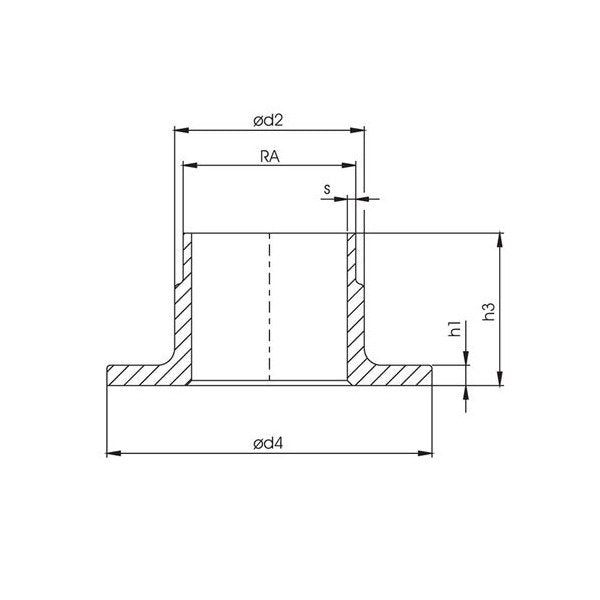

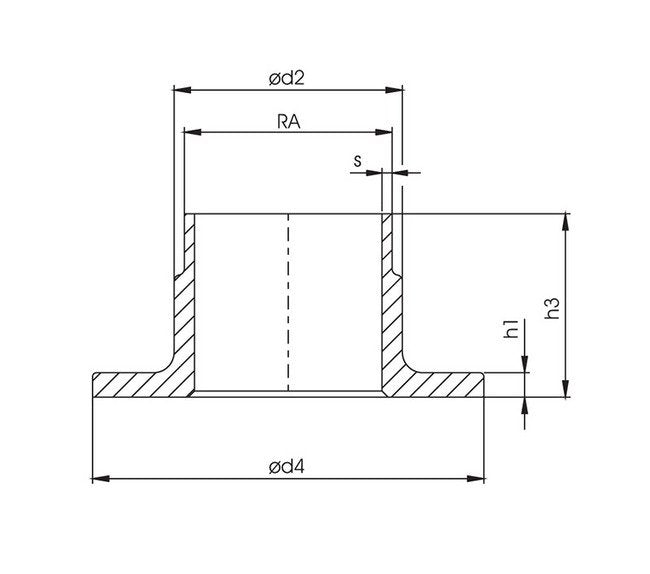

Upgrade your piping system with our high-quality Copper Nickel Inner Flanges. Designed to meet DIN 86037 standards, these flanges feature a 28-inch nominal size, 6.0mm thickness, and precision engineering for optimal performance. With dimensions RA-OD 711mm, d2 714mm, d4 800mm, h3 60mm, and h1 14mm, these flanges are durable and reliable. Trust in the CuNi10Fe1.6Mn body material for long-lasting corrosion resistance and a weight of 21 kg ensures stability.

Product Specifications

Specifications Body Material

CuNi10Fe1.6Mn

Specifications D2

714 mm

Specifications D4

800 mm

Specifications H1

14 mm

Specifications H3

60 mm

Specifications Nominal Size

28 in

Specifications Norm

DIN 86037

Specifications Ra Od

711 mm

Specifications S

6.0 mm

Specifications Weight

21 kg

Copper Nickel Inner Flanges - 28in, 6.0mm
