Copper Nickel Inner Flanges 32in
Copper Nickel Inner Flanges 32in
SKU:FLA-183864
Durable and precise Copper Nickel Inner Flanges in 32in size, meeting DIN 86037 standards for industrial reliability.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Copper Nickel Inner Flanges 32in
$349.99
Quantity: 1
Claim Your Seller Account
Copper Nickel Inner Flanges 32in
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

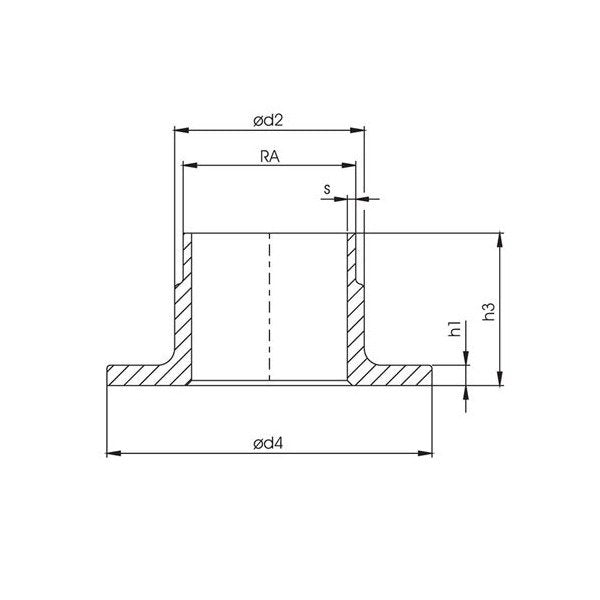

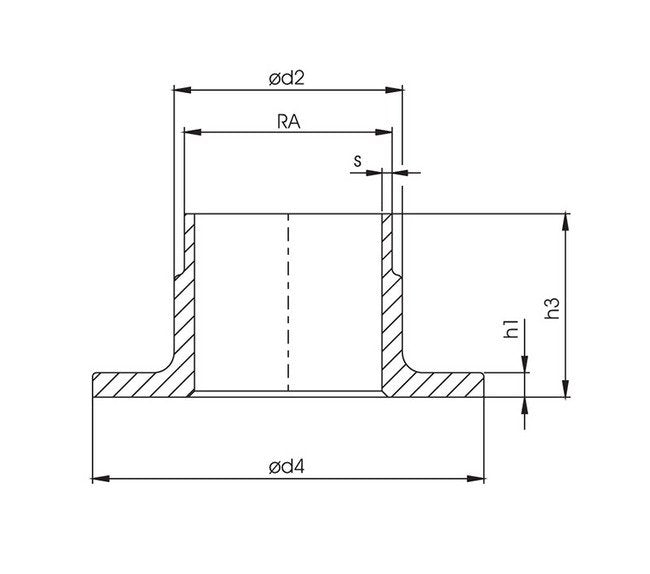

Enhance your piping system with these high-quality Copper Nickel Inner Flanges. Featuring a Nominal Size of 32 inches and meeting DIN 86037 standards, these Inner Flanges are designed for durability and precision. The flange dimensions including RA-OD, s, d2, d4, h3, and h1 ensure a perfect fit and optimal performance. Weighing 24.50 kg, these Inner Flanges are ideal for industrial applications where reliability is paramount.
Product Specifications
Specifications Body Material
CuNi10Fe1.6Mn
Specifications D2
816 mm
Specifications D4
905 mm
Specifications H1
14 mm
Specifications H3
60 mm
Specifications Nominal Size
32 in
Specifications Norm
DIN 86037
Specifications Ra Od
813 mm
Specifications S
6.0 mm
Specifications Weight
24.50 kg
