Copper Nickel Inner Flanges - 7in DIN 86037

Name: Copper Nickel Inner Flanges - 7in DIN 86037
Brand: World Wide Metric, Inc.
SKU: FLA-62bcad
Price: 49.99 USD
Availability: OutOfStock

SKU:FLA-62bcad

Premium Copper Nickel Inner Flanges - DIN 86037, 7in size. Ideal for industrial use.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

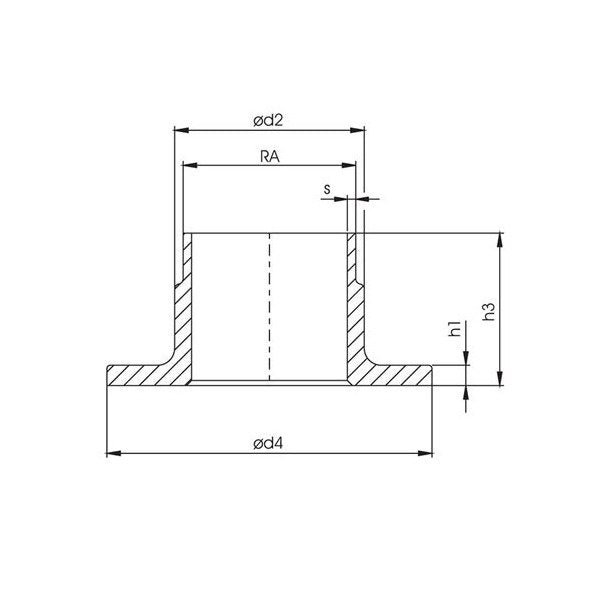

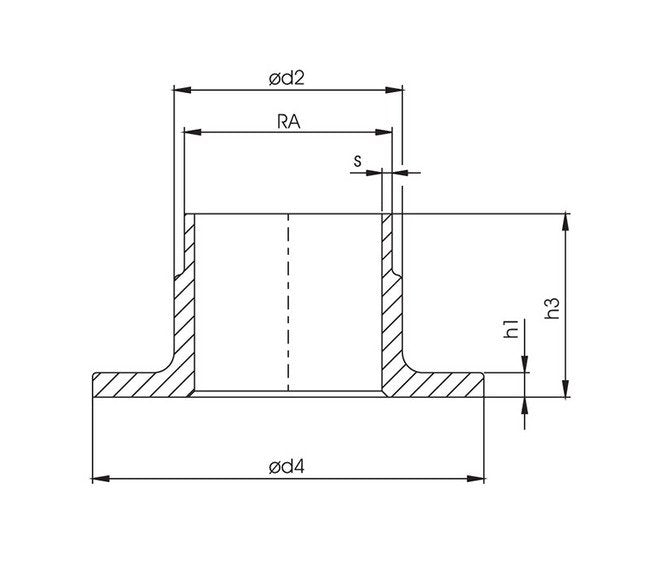

Upgrade your piping system with our Copper Nickel Inner Flanges designed to exacting DIN 86037 standards. These flanges feature a Nominal Size of 7 inches, RA - OD of 194mm, and a robust Body Material of CuNi10Fe1.6Mn, ensuring durability and performance. With precision dimensions including s, d2, d4, h3, and h1, these flanges offer a secure fit and easy installation. Weighing only 2.30 kg, these Inner Flanges are ideal for various industrial applications where quality and reliability are paramount.

Product Specifications

Specifications Body Material

CuNi10Fe1.6Mn

Specifications D2

197 mm

Specifications D4

242 mm

Specifications H1

9 mm

Specifications H3

50 mm

Specifications Nominal Size

7 in

Specifications Norm

DIN 86037

Specifications Ra Od

194 mm

Specifications S

3.0 mm

Specifications Weight

2.30 kg

Copper Nickel Inner Flanges - 7in DIN 86037
