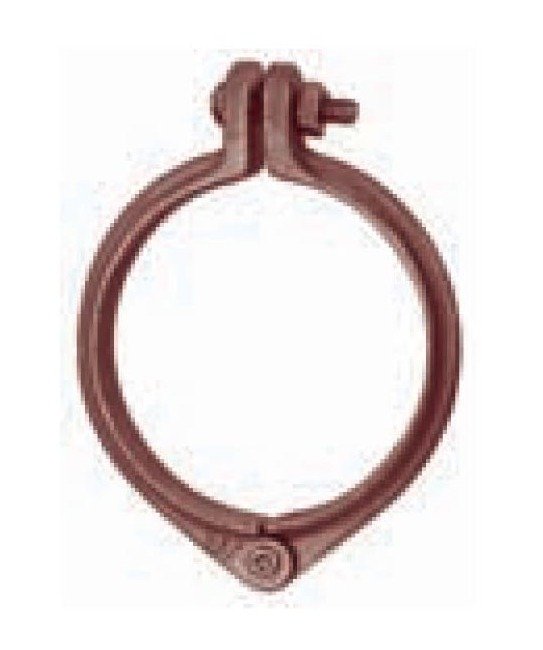

Copper Plated Split Tubing Ring - Malleable Iron 2"
Copper Plated Split Tubing Ring - Malleable Iron 2"
SKU:PIP-ba9561
Durable Copper Plated Split Tubing Ring for non-insulated stationary copper tubes, compliant with Federal Specifications. Ideal for varied installations.
Regular price
$17.99
Regular price
Sale price
$17.99
Unit price
per
Initiate Order
Copper Plated Split Tubing Ring - Malleable Iron 2"
$17.99
Quantity: 1
Claim Your Seller Account
Copper Plated Split Tubing Ring - Malleable Iron 2"
$17.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Copper Plated Split Tubing Ring, made of malleable iron, is a versatile hanger designed for the suspension of non-insulated stationary copper tubes ranging from 1/2" to 3". With a maximum load capacity of 300 lbs, this durable ring is copper plated for enhanced longevity and corrosion resistance. Compliant with Federal Specification A-A-1192A (Type 11), WW-H-171-E (Type 11), and MSS-SP-69 (Type 11), it ensures high-quality performance for various installations. It can be used with rod sockets or turnbuckle adjusters, offering a universally adaptable solution for your piping needs.
Product Specifications
Specifications Bolt Size
1/4 x 1 1/4 inches

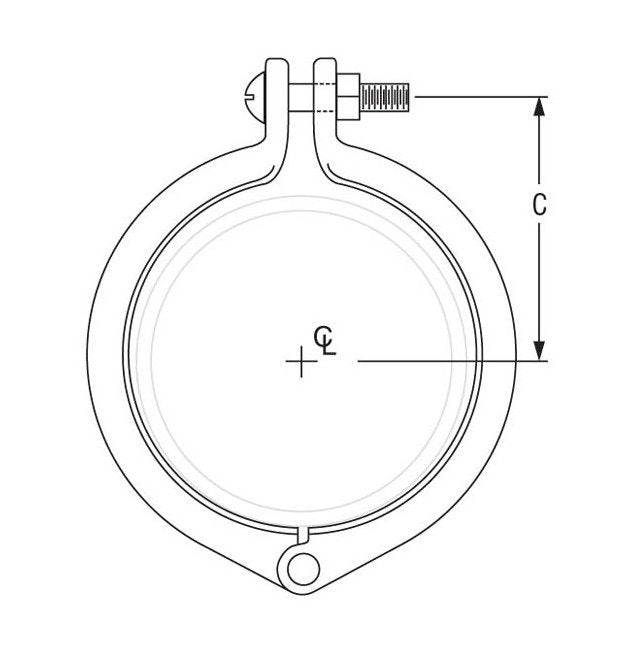

Specifications Dimension C
1 11/16 inches
Specifications Finish
Copper Plated
Specifications Material
Malleable Iron
Specifications Maximum Load
300 lbs
Specifications Tube Size
2 inches
Specifications Weight
0.24 lbs
