Copper Split Tubing Ring 2 1/2"
Copper Split Tubing Ring 2 1/2"
SKU:PIP-c5a7f0
Durable Copper Split Tubing Ring for efficient suspension of copper tubes. Compliant with Federal Spec A-A-1192A & MSS-SP-69.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Copper Split Tubing Ring 2 1/2"
$12.99
Quantity: 1
Claim Your Seller Account
Copper Split Tubing Ring 2 1/2"
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

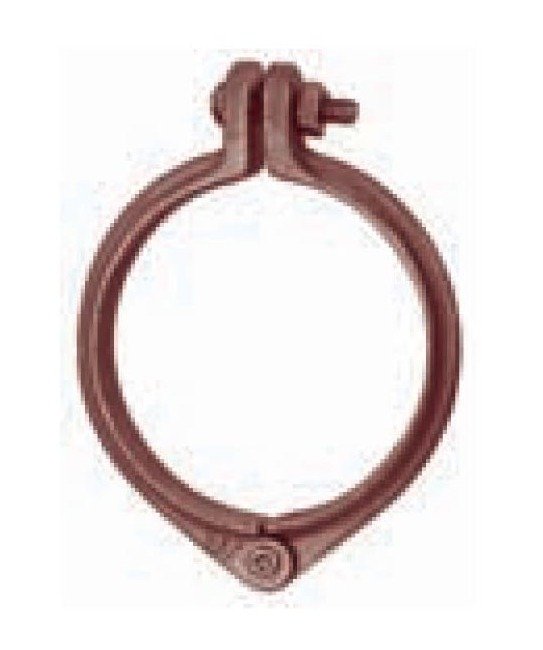

The Copper Split Tubing Ring in 2 1/2" size offers durable support for non-insulated stationary copper tubes. Constructed from malleable iron with a copper-plated finish, this versatile ring can suspend tubing efficiently. With a maximum load capacity of 450 lbs, it is compatible with rod sockets or turnbuckle adjusters. Compliant with Federal Spec A-A-1192A, WW-H-171-E, and MSS-SP-69, this split tubing ring ensures universal adaptability and reliable performance in various installations.
Product Specifications
Specifications Bolt Size
1/4 x 1 1/4 inches

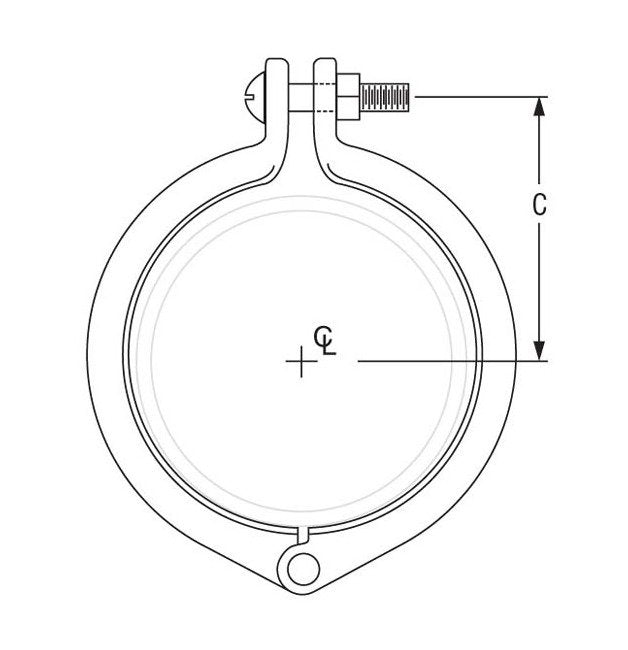

Specifications Dimension C
1 15/16 inches
Specifications Finish
Copper Plated
Specifications Material
Malleable Iron
Specifications Maximum Load
450 lbs
Specifications Tube Size
2 1/2 inches
Specifications Weight
0.35 lbs
