Upgrade your chemical plant applications with the Corroline Plus 3/4" Hose Assembly. Featuring enhanced flexibility, fire resistance, and kink resistance, this hose assembly exceeds industry standards. With a maximum working pressure of 624 psi and compliance with BS5173 and EN 16643, this hose assembly is a reliable choice for demanding environments.
Product Specifications
Construction Construction

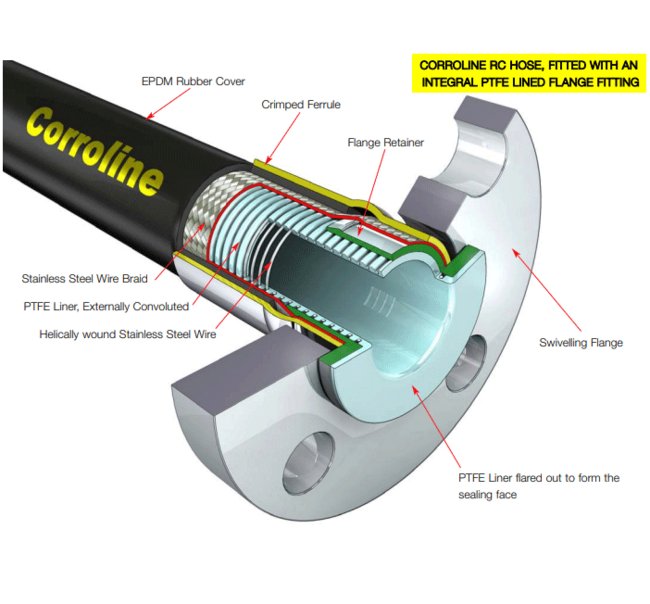

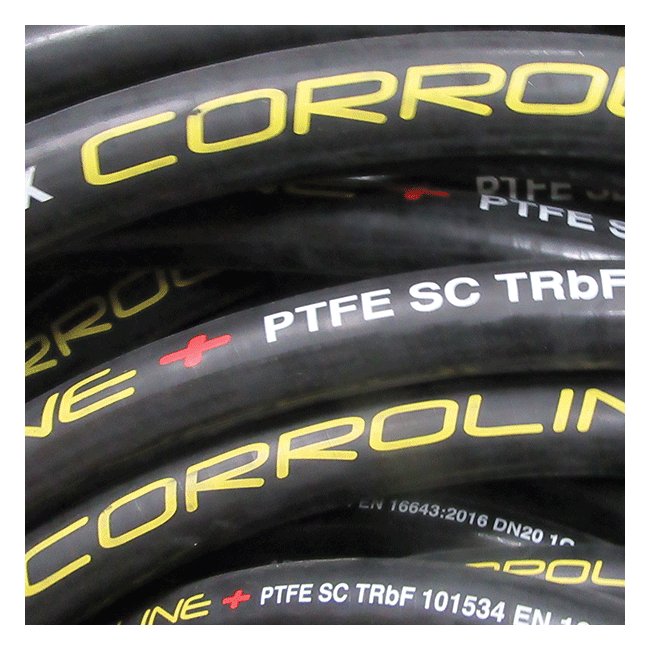

Corroline is built around a patented PTFE hose liner design, which has a slightly rippled smooth bore inside, but convoluted outside to generate excellent flexibility combined with "hoop strength".A stainless helical wire is wound in to the external convolutions, which adds to the kink resistance, crush resistance and the resistance of the hose to both pressure and vacuum.This reinforced PTFE Liner construction is strong enough to withstand full vacuum and kinking without the need for either internal convolutions or the need to bond the liner to an outer cover, making it an ideal hose liner design, and a significant improvement upon standard products currently available.The PTFE liner is then further reinforced with an outer braid, either a Stainless Steel wire braid (SS Grade) or a Polypropylene braid (PB Grade) to provide two braided hose grades.The most popular grade (RC Grade) includes an outer cover of abrasion resistant, black antistatic EPDM rubber which is extruded on to a SS braided liner, with a super-smooth surface finish to aid external cleaning. A yellow, "CORROLINE" stripe is printed on to the cover. Other texts and colored stripes are also available to special order.
Pressure And Temperature Limitations Pressure And Temperature Li
Maximum Working PressureAs listed above apply from -40ºC (-40ºF) up to the maximum operating temperature of 150ºC (302ºF).Burst PressureThe hose burst pressures are equal to or more than the maximum working pressures à 4.
Specifications Actual Bore Size
0.76 in | 19.4 mm
Specifications Fire Resistance
Corroline+ hose is Fireproof to BS5173 Section 103.13 Parts 6.2 and 6.3, and Corroline+ hose assemblies can be upgraded to Fireproof by applying DBK 300 at each end. All assemblies comply with the flammability requirement as set out in EN 16643.
Specifications Flexibility

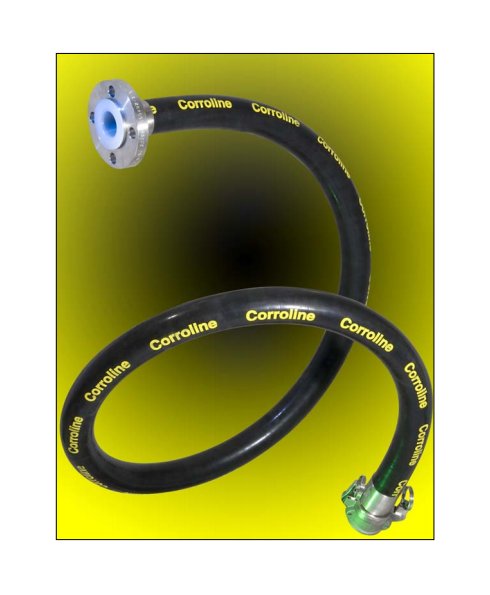

Much less force to bend than any other smooth bore PTFE lined hose product.
Specifications Flow Rates
More than 2 times the flow rates for convoluted bore hose designs. Consult Aflex Hose for specific flow rate information.
Specifications Gas Permeability
Reduced gas permeability compared with other PTFE lined hose designs, due to the heavy compression applied to the PTFE during processing, which reduces porosity.
Specifications Kink Resistance
Much more resistant to kinking than any other smooth bore PTFE lined hose product, and much more kink resistant than the previous Corroline product.
Specifications Maximum Continuous Length
100 ft | 30 m
Specifications Maximum Working Pressure
624 psi | 43 bar
Specifications Media
Chemical
Specifications Minimum Bend Radius
2 in | 50 mm
Specifications Nominal Size
3/4 in | 20 mm
Specifications Outside Diameter
1.12 in | 28.5 mm
Specifications Rolling U Flex Life Test
More than 100 Ã the flex life to failure compared with all other types of smooth bore PTFE, FEP and PFA lined rubber covered hose products.
Specifications Vacuum Limitations
Usable at vacuum to -0.9 bar up to 150ºC/302ºF.
Specifications Weight Per Unit Length
0.70 kg/m | 0.47 lb/ft
