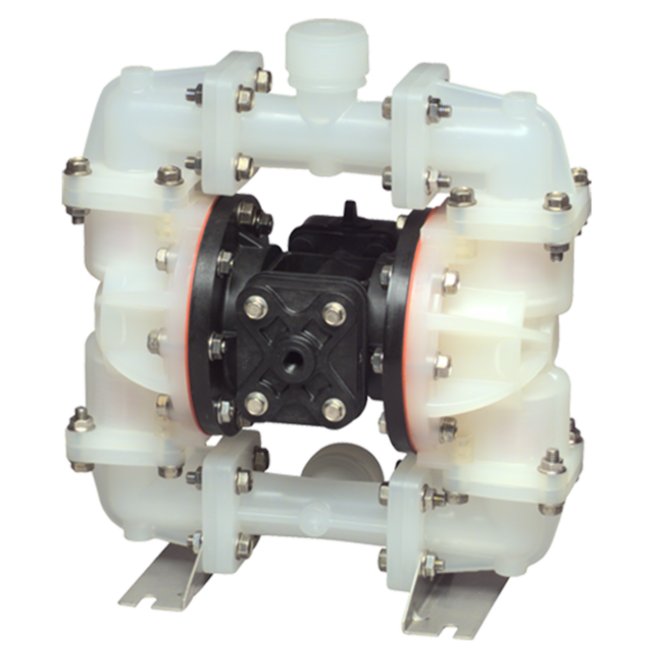

Corrosion-Resistant S07 Top Discharge Non-Metallic Ball Valve Pump

Name: Corrosion-Resistant S07 Top Discharge Non-Metallic Ball Valve Pump
Brand: Springer Pumps, LLC
SKU: PRO-dceab5
Price: 899.99 USD
Availability: OutOfStock

SKU:PRO-dceab5

Durable S07 Non-Metallic Diaphragm Pump for corrosive fluids, solids handling, and waste water applications.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S07 Non-Metallic Ball Valve Diaphragm Pump is expertly designed for handling highly corrosive fluids, intermittent/on-demand pumping needs, and low abrasive fluids with suspended solids. Crafted with TPE and PTFE diaphragms and check valves, this pump ensures durability and reliability. It features an Inlet Size of 0.5 NPT Threads, Solids Handling capability of 0.15 inches, and a Max. Flow Rate of 23 gpm. Ideal for waste water applications, this pump delivers exceptional performance and longevity.

Product Specifications

Curves 0

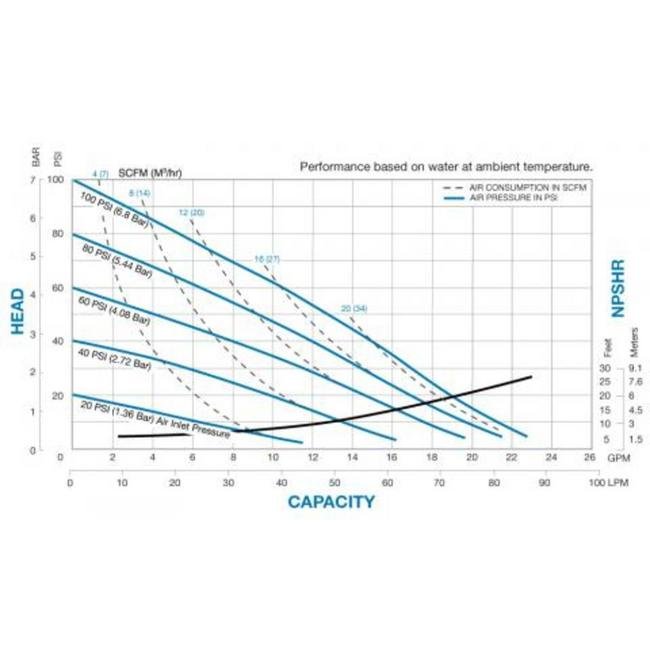

Performance Curves

Specifications Customs Code

ECCN Code EAR99

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

13 in | 338.93 mm

Specifications Inlet Size

0.5 NPT Threads in | 13 NPT Threads mm

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

23 gpm | 1380.00 gph | 87.06 lpm | 5223.87 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Sku

WRS07B1PZPPNS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Weight

17 lbs | 7.71 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

7 in | 179.39 mm

Category 6

Standard Duty Diaphragm Pumps

Corrosion-Resistant S07 Top Discharge Non-Metallic Ball Valve Pump
