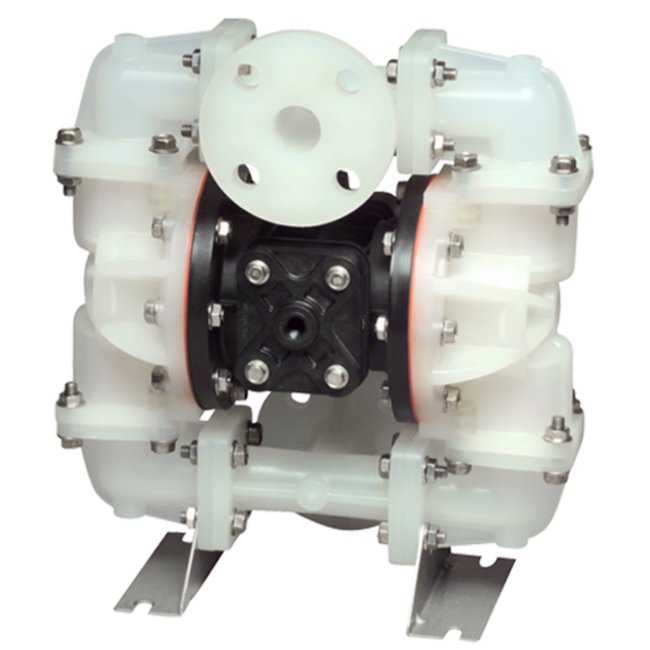

Corrosion-Resistant S10 Top Discharge Diaphragm Pump

Name: Corrosion-Resistant S10 Top Discharge Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-2404a6
Price: 749.99 USD
Availability: OutOfStock

SKU:PRO-2404a6

Reliable S10 Top Discharge Diaphragm Pump for corrosive fluids & suspended solids. Durable materials ensure top performance.

$749.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S10 Top Discharge Non-Metallic Ball Valve Pump is an exceptional choice for handling highly corrosive fluids with suspended solids. Constructed with durable TPE and PTFE materials, this pump is perfect for intermittent use, portability, and low abrasive fluid transfer. With a max flow rate of 23 gpm and Nylon wetted material, it ensures reliable performance and longevity in demanding environments.

Product Specifications

Curves 0

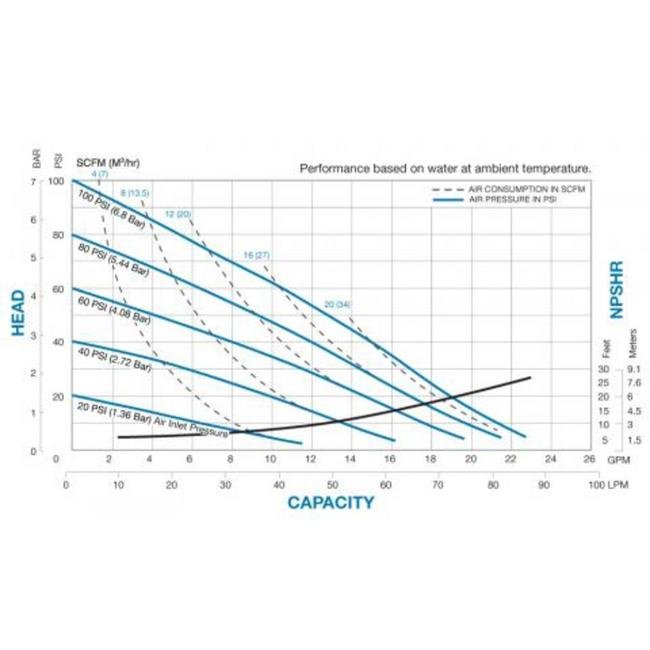

Performance Curves

Specifications Customs Code

ECCN Code EAR99

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

14 in | 350.84 mm

Specifications Inlet Size

1 ANSI Flange in | 25 ANSI Flange mm

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

23 gpm | 1380.00 gph | 87.06 lpm | 5223.87 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Sku

WRS10B1NZNPAS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Weight

23 lbs | 10.43 kg

Specifications Wetted Moc

Nylon

Specifications Width

8 in | 192.09 mm

Category 6

Standard Duty Diaphragm Pumps

Corrosion-Resistant S10 Top Discharge Diaphragm Pump
