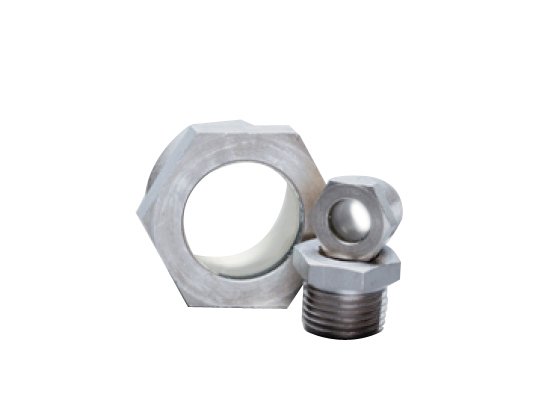

Corrosion-Resistant Stainless Steel Threaded Sight Glass Window
Corrosion-Resistant Stainless Steel Threaded Sight Glass Window
SKU:SIG-951514
Durable stainless steel sight glass window for corrosive liquids. Ideal for power transmissions, gear boxes, and pumps.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Corrosion-Resistant Stainless Steel Threaded Sight Glass Window
$34.99
Quantity: 1
Claim Your Seller Account
Corrosion-Resistant Stainless Steel Threaded Sight Glass Window
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience durability and clarity with our hermetically sealed stainless steel sight glass window designed for corrosive and hazardous liquid level monitoring. Constructed with high-quality 303 stainless steel, this threaded window is ideal for power transmissions, gear boxes, reservoirs, and pumps. With a maximum design pressure of 250 psi and a temperature resistance up to 400 °F, this product ensures reliability in various environments. The precise specifications, including a 3/4 - 14 NPT thread size and 0.750 in lens diameter, make it a cost-effective and versatile solution for industrial applications.
Product Specifications
Note For Design Pressure 0
Actual working pressure to which these units are subjected should be chosen by the user to assure a proper margin of safety.
Specifications Hex Size
1 1/16 in
Specifications Hex Thickness
5/16 in
Specifications Length
15/16 in
Specifications Lens Diameter
0.750 in
Specifications Material
303 Stainless Steel
Specifications Maximum Design Pressure
250 psi
Specifications Maximum Temperature
400 ºF
Specifications Thread Size Npt
3/4 - 14
