Counterbalanced Reversible Boom Cranes
Counterbalanced Reversible Boom Cranes
SKU:REV-9a2362
Powerful Counterbalanced Reversible Boom Cranes for efficient heavy lifting in confined spaces. Telescopic boom, durable design, and maximum flexibility.
Regular price
$8,500.00
Regular price
Sale price
$8,500.00
Unit price
per
Initiate Order
Counterbalanced Reversible Boom Cranes
$8,500.00
Quantity: 1
Claim Your Seller Account
Counterbalanced Reversible Boom Cranes
$8,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

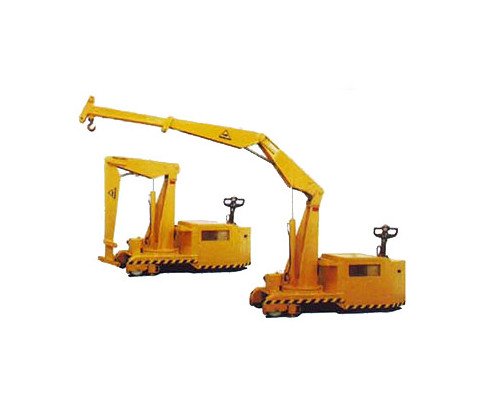

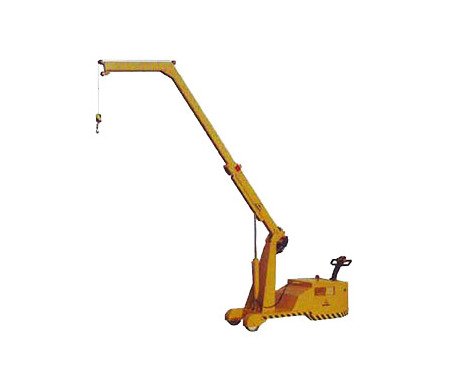

Experience ultimate lifting power and versatility with our Counterbalanced Reversible Boom Cranes. Capable of lifting up to 2000 lbs with the boom extended and 4000 lbs with the boom retracted, these cranes offer a maximum lift height of 160 inches and a reach beyond wheels of 70 inches. With a telescopic boom for added flexibility, manual hydraulic lifting cylinder, and optional powered lifting cylinder, these cranes are designed for efficiency in confined spaces. Built with quality materials and innovative design, our cranes ensure durability and ease of maneuverability, making them ideal for heavy-duty industrial use.
Product Specifications
General Description General Description
Telescopic boom provides added versatility!Manual hydraulic lifting cylinder is standard. Optional powered lifting cylinder available in electric, either battery (battery not included except on self-propelled models) or 110 volt A/C.Self-propelled available for maximum mobility and versatility on regular-duty models. Standard on heavy-duty models (10,000 lb. capacities & up).Clear reach for heavy jobs. Up to an astounding 82" boom reach beyond its wheels when extended.180º steering for incredible maneuverability! Built at only 34" inches wide for ease of passage through narrow doorways & aisles.Rugged design for long lifeRoller bearing wheels for easy movement and positioningReady to configure your own? Give us a call!Now available up to 100,000 pounds capacity!!
Note Note
A counterweight box is supplied with the RBC, but counterweights are not included, except for self-propelled units.Only RBC-3000 and under are available manually propelled.

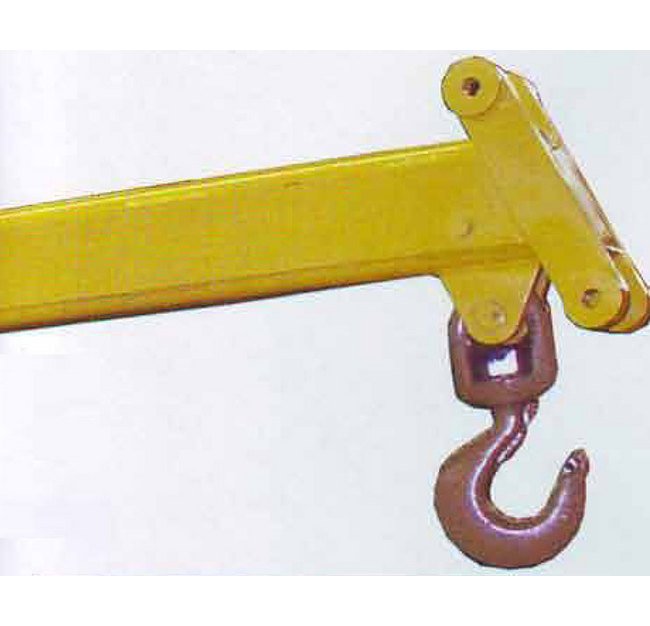

Optional Gooseneck Gooseneck Steering Angle
180 º
Optional Gooseneck Name
Gooseneck Boom Extension
Optional Gooseneck Optional Gooseneck Item
RBC-GN

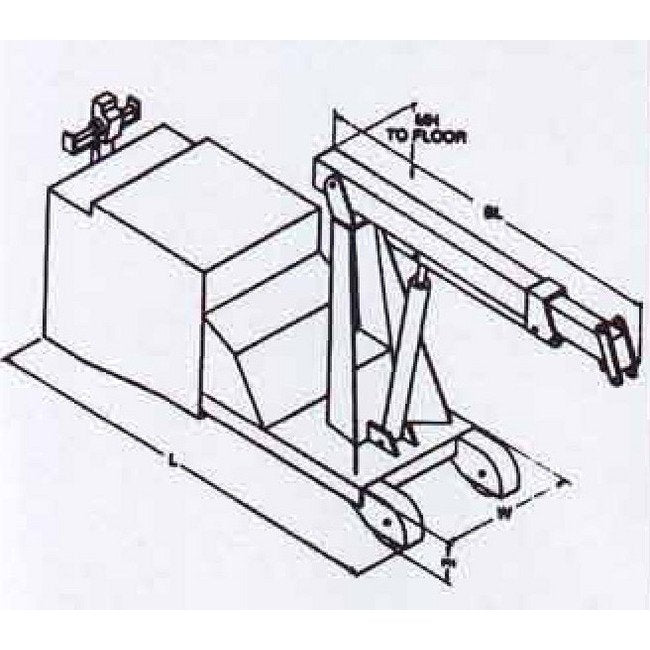

Specifications Boom Length Fully Adjustable Form
60 to 108 in
Specifications Capacity With Boom Extended
2000 lb
Specifications Capacity With Boom Retracted
4000 lb
Specifications Casters Rigid
12 x 3.5 in
Specifications Casters Swivel
8 x 2.5 in
Specifications Counterweight Not Included
Units are only available self-propelled lb
Specifications Floor To Hook Height Boom Extended
11 in
Specifications Floor To Hook Height Boom Retracted
35 in

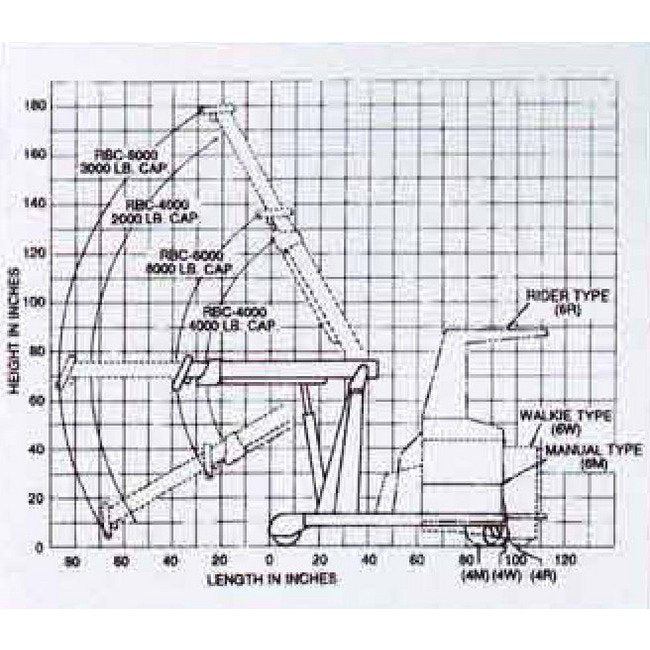

Specifications Maximum Lift Height With Boom Retracted
118 in
Specifications Maximum Lift Height With Extension Boom
160 in
Specifications Maximum Reach Beyond Wheels
70 in
Specifications Overall Length
84 in
Specifications Overall Length Riding Type
100 in
Specifications Overall Length Walkie Type
96 in
Specifications Overall Mast Height
76 in
Specifications Overall Mast Height Riding Type Only
89 in
Specifications Shipping Weight
5000 lb
Specifications Steering Angle
180 º
