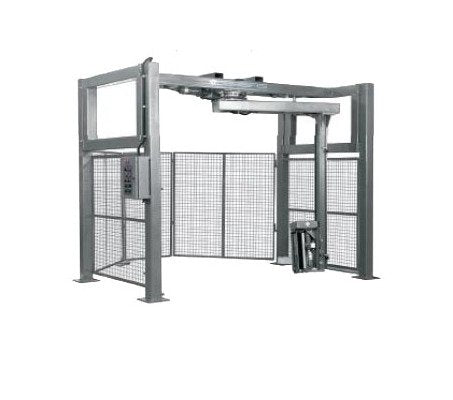

The Cousins Free-Standing 4 Post Stand Overhead Semi-Automatic Series Stretch Wrapper is a top-quality packaging solution designed for efficiency and reliability. Featuring a robust frame and advanced controls including a Panasonic PLC, this stretch wrapper offers maximum load dimensions of 56" x 56" x 80" with unlimited load weight capacity. The Super Rapid Thread II™ Film Carriage Elevator ensures precise pre-stretch capabilities and superior film-to-roller contact. With a heavy-duty arm/tower design and a 5-year warranty on steel fabrications, this stretch wrapper is built to last.
Product Specifications
Armtower Design Armtower Design
Heavy-duty ring bearing - chain/sprocket drive.1 - 15RPM.3/4 HP DC variable speed motor.Dust tight slip ring assembly.Final revolution deceleration and positive stop alignment.Heavy-duty structural steel.Electrostatic powder coated paint finish.5 year warranty on steel fabrications

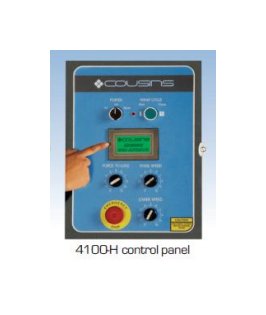

Controls Controls
Panasonic PLC.Separate up/down spiral speed controls.Emergency stop button.Up only or up/down wrap program.Film tension [Force-to-Load] control.Rotary arm and film carriage elevator dynamic braking.Triple beam type auto load height sensing photo-eye, detects dark or shiny loads.Separate 1 to S revolution top & bottom wrap control.NEMA 12 control panel enclosure.3 year warranty on components.
Film Carriage Elevator Film Carriage Elevator
Super Rapid Thread II⢠20" capacity pre-stretch film carriage.Safety door with auto power cut-off switch.Special rim threading device - uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside on the load.1/2 HP DC variable speed motor.33% to 313%fixed stretch capability.Carriage descent safety shut-off device.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers
Load Capacity Maximum Load Height
80 in
Load Capacity Maximum Load Length
56 in
Load Capacity Maximum Load Width
56 in
Load Capacity Note For Load Capacity
Unlimited load weight.Larger load size options are available.
Specifications Control Panel Current
15 A
Specifications Control Panel Frequency
60 Hz
Specifications Control Panel Phase
1
Specifications Control Panel Voltage
115 V
Specifications Frame Style
Free-Standing
