Cousins HP-3200 High Profile Automatic Stretch Wrapper
Cousins HP-3200 High Profile Automatic Stretch Wrapper
SKU:PAC-2767ca
Revolutionize packaging with the Cousins HP-3200 Automatic Stretch Wrapper for efficient, safe, and cost-saving operations.
Regular price
$9,499.99
Regular price
Sale price
$9,499.99
Unit price
per
Initiate Order
Cousins HP-3200 High Profile Automatic Stretch Wrapper
$9,499.99
Quantity: 1
Claim Your Seller Account
Cousins HP-3200 High Profile Automatic Stretch Wrapper
$9,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

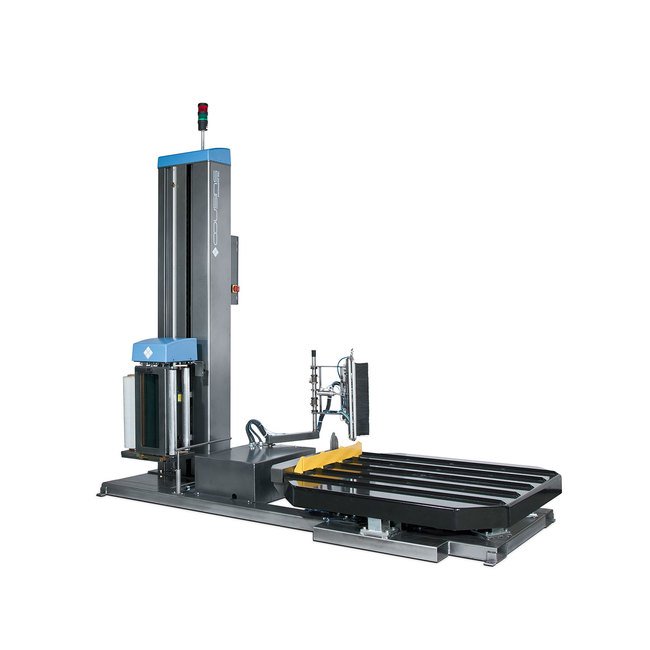

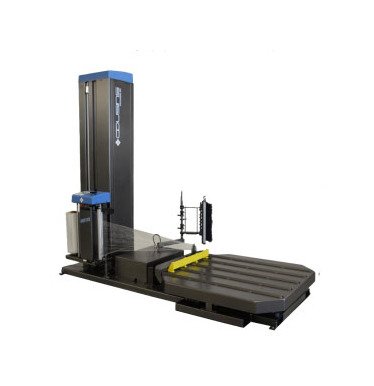

The Cousins HP-3200 High Profile Platform Automatic Stretch Wrapper revolutionizes your packaging process with its patented fully automatic operation. This electric wrapper, branded by Cousins, boasts a seamless wireless remote operation from the forklift, eliminating the need for manual film handling and enhancing safety. With a robust turntable, versatile film carriage system, precise controls, and structural steel construction, this wrapper ensures efficient wrapping with a maximum load weight capacity of 10,000 lb. Save on labor costs and enhance productivity with the HP-3200.
Product Specifications
Automation Features Automation Features
"All Electric - No Pneumatics Required".Electro-mechanically actuated film clamp mechanism.Electro-mechanically actuated film tail cut/wipe arm mechanism.Ni-chrome impulse hot wire film cut off c/w automatic periodic cleaning cycle.
Controls Control Features
Panasonic PLC with Touchscreen Operator Interface.Power Off - On - Reset switch & Power On indicator light.Single button Auto Wrap Cycle Start/Pause.Cycle Pause for applying top sheets.Reinforce Wrap control for mid-wrapping.Emergency Stop button.Turntable Jog button.Film Carriage Lower & Raise buttons.Film Clamp Open/Close button.Film tension (Force-to-Load) control.Separate film carriage raise & lower speed controls.Variable turntable speed control.Triple beam auto load height sensing photo-eye, detects dark or shiny loads.Separate 1 to 12 revolution top & bottom wrap control.Selectable Reduced Bottom Film Force parameter for wrapping bottom of load.A - B - C Wrap Program selector with capability to input and store unique wrapping parameters for each program.Wireless remote start/stop control â optional lanyard, pendant or pedestal control station available.NEMA 12 control panel enclosure.Non-proprietary UL/CSA approved components.
Electrical Input Requirements Current
15 A
Electrical Input Requirements Frequency
60 Hz
Electrical Input Requirements Phase
1
Electrical Input Requirements Voltage
115 V
Film Carriage Elevator Film Carriage Elevator
1/2 HP AC variable speed motor.ANSI #40; direct chain drive c/w shock dampener & Anti-Fall Safety Device.Maintenance free carriage guidance system.
Film Delivery System Film Delivery System
NEW Super Rapid Thread II â¢Â 20" capacity pre-stretch film carriage.Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load.1/2 HP AC variable speed motor.Fully electronic dynamic dancer corner compensation.33% to 313% fixed stretch capability.Pre-stretch ratio variable using easy sprocket change.Carriage Descent Obstruction Safety Shut-Off Device.Rapid Thread â¢Â Safety Door with auto power cut-off switch.Side mounted film carriage for operator convenience and safety.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers.
Load Capacity Maximum Diagonal Load Size
71 in
Load Capacity Maximum Dynamic Load Weight
4500 lb
Load Capacity Maximum Load Height
80 in
Load Capacity Maximum Load Length
50 in
Load Capacity Maximum Load Width
50 in
Load Capacity Maximum Static Load Weight
10000 lb
Load Capacity Minimum Load Height
24 in
Load Capacity Minimum Load Length
30 in
Load Capacity Minimum Load Width
30 in
Specifications Note For Production Speed
Process rates will vary with load size, number of wraps & forklift load/unload time.
Specifications Production Speed
1 to 40 loads/hr
Specifications Turntable Octagonal Size
52 in
Structural Features Structural Features
All structural steel construction.Forklift truck portable base structure design - lifting tubes included for front and rear access.Structural steel tube machine tower with sheet metal covers.Electro-static powder coated
Turntable Turntable
52" octagonal 5/16" thick formed steel plate turntable.4 point caster support system.Turntable height less than 12" from floor.ANSI #50; direct chain drive c/w chain tensioner.3-12 RPM rotational speed c/w soft start acceleration.1/2 HPÂ ACÂ variable speed motor.Final revolution deceleration and positive stop alignment.Front & back forklift ports for easy movement.
