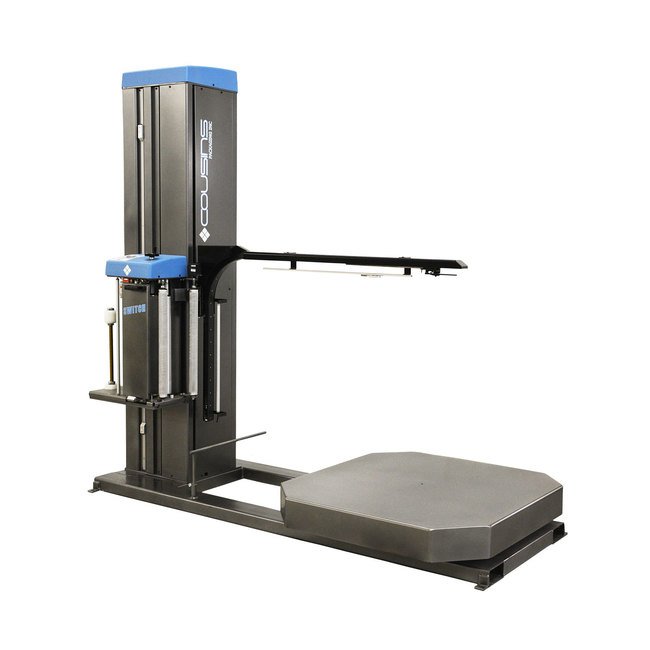

Cousins HP-SWA Automatic Switch A-Arm Stretch Wrapper
Cousins HP-SWA Automatic Switch A-Arm Stretch Wrapper
SKU:PAC-f5708d
Streamline pallet wrapping with the Cousins HP-SWA Stretch Wrapper's automatic A-Arm design, wireless remote operation, labor cost savings, and enhanced safety features.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Cousins HP-SWA Automatic Switch A-Arm Stretch Wrapper
$7,499.99
Quantity: 1
Claim Your Seller Account
Cousins HP-SWA Automatic Switch A-Arm Stretch Wrapper
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Cousins HP-SWA Automatic Switch A-Arm Stretch Wrapper is a cutting-edge solution for efficient pallet wrapping. With an innovative patented fully automatic design, this stretch wrapper allows operation from a forklift using a wireless remote, eliminating the need for manual film attachment and cutting. Boasting labor cost savings and enhanced safety features, such as the A-Arm film cut and hold device, this stretch wrapper offers exceptional performance with a speed range of 1 to 40 loads per hour. Equipped with advanced automation features and structural steel construction, the HP-SWA Stretch Wrapper is a reliable and versatile choice for packaging operations.
Product Specifications
Automation Features Automation Features
"All Electric - No Pneumatics Required"."Patent Pending" Cousins exclusive patent pending A-Arm film cut and hold device starts and ends the wrap process at the top of the load. This uniquely different approach to attaching and cutting the stretch film provides you with these benefits:.Selectable top banding capability.Stabilizes the load early in the wrap cycle.Places the ending film tail at the top of the load instead of the bottom.There is no film clamp on the turntable that can be damaged by debris or operator error - also eliminates the need for slip-rings to supply power onto the turntable for less maintenance.Load placement on the turntable is not critical.No air hook-ups or noisy compressors.Automatic First Revolution Load Scanning Safety Feature detects uneven or partial stacked top layers and automatically adjusts A-Arm height clear of obstructions.A-Arm Anti-Fall Safety Device.
Controls Controls
Electronic controls with LCD operator interface.Power Off - On - Reset switch & Power On indicator light.Single button Auto Wrap Cycle Start/Pause.Cycle Pause for applying top sheets.Reinforce Wrap control for mid-wrapping.Emergency Stop button.Turntable Jog button.Film Carriage Lower & Raise buttons.Film tension (Force-to-Load) control.Separate film carriage raise & lower speed controls.Operator programmable turntable speed control.Triple beam auto load height sensing photo-eye, detects dark or shiny loads.Separate 1 to 12 revolution top & bottom wrap control.Selectable Reduced Film Tension parameters for wrapping top and/or bottom of load.A - B - C Wrap Program selector with capability to input and store unique wrapping parameters for each program.Wireless remote start/stop control - optional lanyard, pendant or pedestal control station available.3 wrap modes:Â automatic spiral wrapping/automatic top banding/semi-automatic.3 machines in one!.
Electrical Input Requirements Control Panel Current
15 A
Electrical Input Requirements Control Panel Frequency
60 Hz
Electrical Input Requirements Control Panel Phase
1
Electrical Input Requirements Control Panel Voltage
115 V
Film Carriage Elevator Film Carriage Elevator
1/2 HPÂ ACÂ variable speed motor.ANSI #40; direct chain drive c/w shock dampener &Â Anti-Fall Safety Device.Maintenance free carriage guidance system.
Film Delivery System Film Delivery System
NEW Super Rapid Thread II ⢠20â³ capacity pre-stretch film carriage.Special Film Threading Device â Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load..1/2 HP AC variable speed motor.Fully electronic dynamic dancer corner compensation.33% to 313% fixed stretch capability.Pre-stretch ratio variable using easy sprocket change.Carriage Descent Obstruction Safety Shut-Off Device.Rapid Thread â¢Â Safety Door with auto power cut-off switch.Side mounted film carriage for operator convenience and safety.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers.
Load Capacity Diagonal Load Size
96 in
Load Capacity Maximum Load Height
75 in
Load Capacity Maximum Load Length
67 in
Load Capacity Maximum Load Width
67 in
Specifications Maximum Dynamic Load Weight
10000 lb
Specifications Maximum Load Diagonal Size To Remain Inboard Of T
68 in
Specifications Maximum Load Length To Remain Inboard Of The Turn
48 in
Specifications Maximum Load Width To Remain Inboard Of The Turnt
48 in
Specifications Maximum Static Load Weight
4500 lb
Specifications Note For Load Capacity
Maximum load heigh: plus up to 4" top overlap.
Specifications Note For Production Speed
Process rates will vary with load size, number of wraps & forklift load/unload time.
Specifications Production Speed
1 to 40 loads/hr
Specifications Turntable Octagonal Size
48 in
Structural Features Structural Features
All structural steel construction.Forklift truck portable base structure design - lifting tubes included for front and rear access.Structural steel tube machine tower with sheet metal covers.Electro-static powder coated
Turntable Turntable
48" octagonal 5/16" thick formed steel plate turntable.4 point caster support system.Turntable height less than 11" from floor.ANSI # 50 direct chain drive c/w chain tensioner.3-12 RPM rotational speed c/w soft start acceleration.1/2 HP AC variable speed motor.Final revolution deceleration and positive stop alignment.Front & back forklift ports for easy movement.Accu-Count exact turntable positioning system for additional film savings!
