Cousins LP-SWA Automatic Switch A-Arm Stretch Wrapper
Cousins LP-SWA Automatic Switch A-Arm Stretch Wrapper
SKU:PAC-39a4ad
Efficient, safe, and precise fully automatic stretch wrapping solution with A-Arm technology.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Cousins LP-SWA Automatic Switch A-Arm Stretch Wrapper
$7,499.99
Quantity: 1
Claim Your Seller Account
Cousins LP-SWA Automatic Switch A-Arm Stretch Wrapper
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

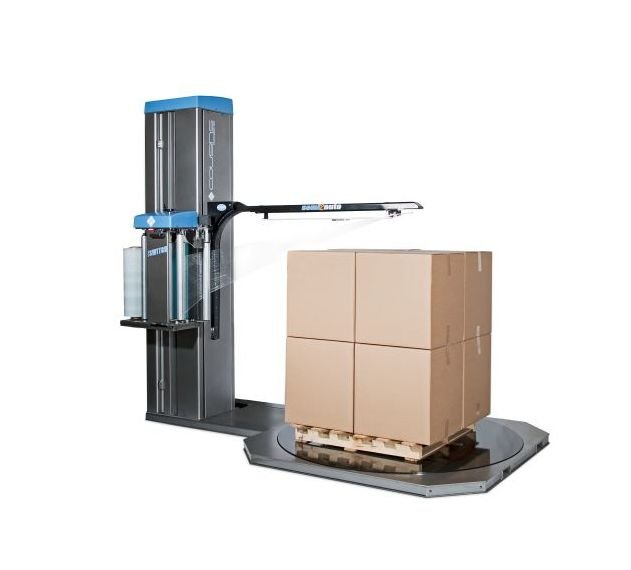

The Cousins LP-SWA Automatic Switch A-Arm Stretch Wrapper is a cutting-edge packaging solution designed for efficiency and safety. This fully automatic stretch wrapper features A-Arm technology, reducing labor costs and ensuring precise film placement with its innovative cut and hold device. With all electric operation, wireless remote control, and advanced film carriage features like Super Rapid Thread II™, this stretch wrapper offers seamless functionality and consistent performance. The low profile turntable design, robust construction, and smart engineering make it a cost-effective choice for both small and large-scale packaging needs.
Product Specifications
Controls Controls

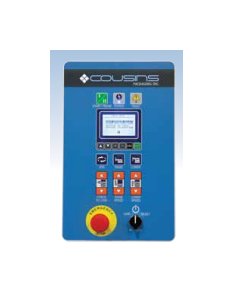

3 machines in 1easy selection for Automatic/semi-automatic/top banding modes.LCD operator interface with diagnostics.Cycle pause & reinforce wrap.Separate up/down spiral speed controls.3 Separate Wrap Programs .Selectable reduced film tension parameters for wrapping top and/or bottom of light loads.Emergency stop button.Wireless remote cycle start/stop.3 year warranty on components.
Electrical Input Requirements Control Panel Current
15 A
Electrical Input Requirements Control Panel Frequency
60 Hz
Electrical Input Requirements Control Panel Phase
1
Electrical Input Requirements Control Panel Voltage
115 V
Features Features

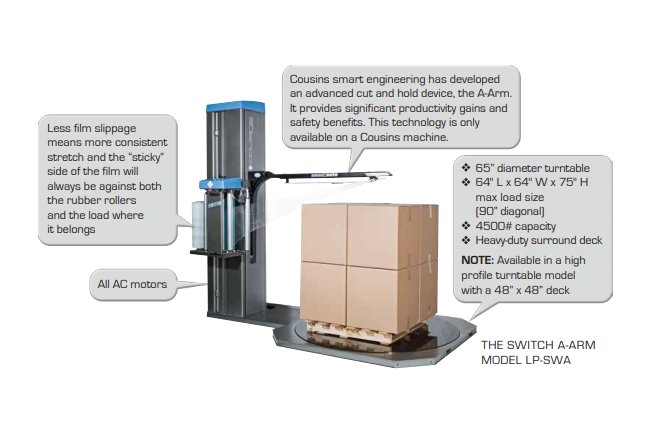

Less film slippage means more consistent stretch and the "sticky" side of the film will always be against both the rubber rollers and the load where it belongs.All AC motors.Cousins smart engineering has developed an advanced cut and hold device, the A-Arm. It provides significant productivity gains and safety benefits. This technology is only available on a Cousins machine.Available in a high profile turntable model with a 48" x 48" deck.
Film Carriage Elevator Film Carriage Elevator

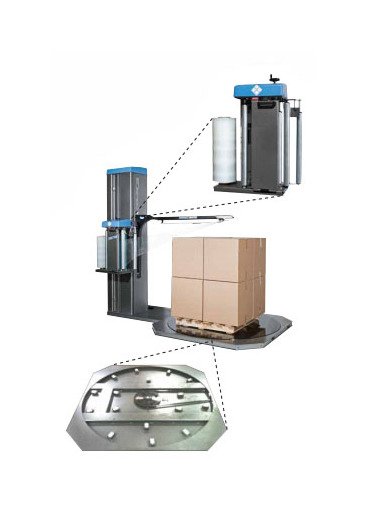

Super Rapid Thread II⢠20" capacity pre-stretch film carriage.Safety Door with auto power cut-off switch.Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside on the load.1/2 HP AC variable speed motor.33% to 313% fixed stretch capability.Carriage Descent Safety Shut-Off Device.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers
Load Capacity Diagonal Load Size
90 in
Load Capacity Maximum Load Height
75 in
Load Capacity Maximum Load Length
64 in
Load Capacity Maximum Load Width
64 in
Low Profile Turntable Low Profile Turntable
1 - 12 RPM with soft start acceleration.1/2 HP AC variable speed drive. Heavy-duty surround deck.Forklift tubes - front and rear. Maintenance free 48 support wheels. Optional loading ramp 60" long x 48" wide complete with 10" level porch area available.
Specifications Turntable Capacity
4500 lb
Specifications Turntable Diameter
65 in
Tower Design Tower Design
Fully enclosed & guarded motors.No exposed cables.Heavy-duty formed/structural steel.Electro-static powder coated paint finish.5 year warranty on steel fabrications.
