Cousins Model 3300-A Automatic Stretch Wrappers
Cousins Model 3300-A Automatic Stretch Wrappers
SKU:PAC-9a1b53
Revolutionize packaging with the Cousins Model 3300-A Stretch Wrapper - unmatched efficiency & safety features.
Regular price
$11,499.00
Regular price
Sale price
$11,499.00
Unit price
per
Initiate Order
Cousins Model 3300-A Automatic Stretch Wrappers
$11,499.00
Quantity: 1
Claim Your Seller Account
Cousins Model 3300-A Automatic Stretch Wrappers
$11,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

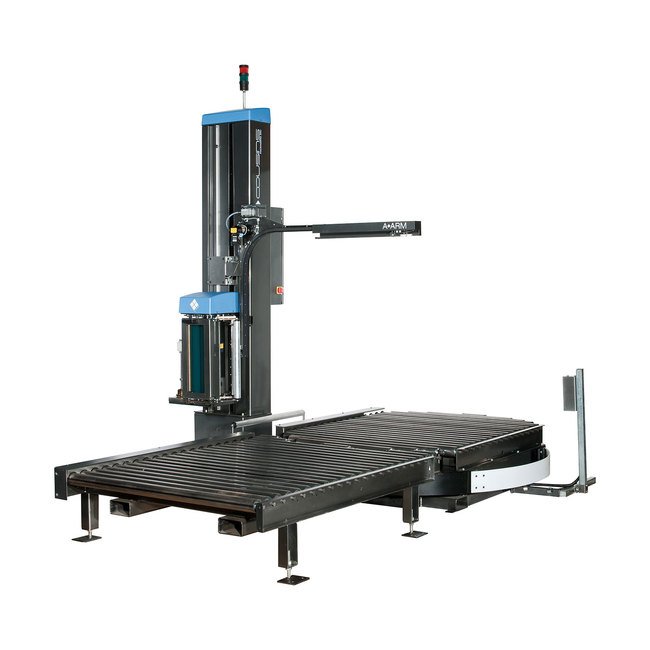

The Cousins Model 3300-A Conveyorized Automatic Customized Stretch Wrappers with Patented A-Arm Technology revolutionize packaging efficiency and safety. Featuring the innovative A-Arm device, this machine eliminates the need for a clamp on the turntable and hot wire film cutters, reducing maintenance downtime. With a production speed of up to 40 loads/hr and a maximum load capacity of 4000 lb, it offers unparalleled performance. The LCD operator interface, advanced film carriage elevator with pre-stretch capability, and fully enclosed tower design ensure optimal functionality and durability. This stretch wrapper is ideal for seamless integration into existing production setups, enhancing productivity and consistency.
Product Specifications
Additional Information Additional Information
Film Carriage - Less film slippage means more consistent stretch and the "sticky" side of the film will always be against both the rubber rollers and the load where it belongs.All Electric - no pneumatic lines or noisy air compressors required.System Configuration - Designed to be installed with existing product flow and conveyor layout design. Whether In-line or off-line, the automation package is designed to be in-line with conveyors using interface relays/logic or off-line standalone system using a wireless cycle start remote.
Controls Controls
LCD operator interface with diagnostics.Separate up/down spiral speed controls.3 Separate Wrap Programs.Selectable Reduced Film Tension parameters for wrapping top and/or bottom of light loads.Emergency Stop button.NEMA 123 year warranty on components
Conveyors Conveyors
Alternating Current (AC) Drives.
Conveyors Conveyors Standard Passline Height
16.5
Conveyors Effective Roller Width
50 in
Conveyors Rollers Diameter On 3 Inch In Centers
2.5 in
Film Carriage Elevator Film Carriage Elevator
Super Rapid Thread II⢠20" capacity pre-stretch film carriage.Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside on the load.AC variable speed motor.33% to 313% fixed stretch capability.Carriage Descent Safety Shut-Off Device.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers
Load Capacity Maximum Load Capacity
4000 lb
Load Capacity Maximum Load Height
70 in
Load Capacity Maximum Load Length
48 in
Load Capacity Maximum Load Width
48 in
Load Capacity Minimum Load Height
Consult factory for minimum height in
Load Capacity Note For Load Capacity
Larger load size options are available.
Production Speed Note For Production Speed
Depending on load sizes and number of wraps.
Production Speed Production Speed
40 loads/hr
Tower Design Tower Design
Fully enclosed & Guarded Motors.No exposed cables.Heavy-duty formed/structural steel.Electro-static powder coated paint finish.5 year warranty on steel fabrications
