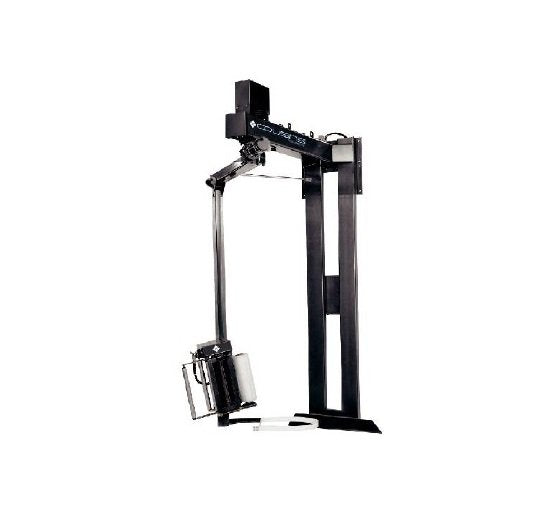

The Cousins Model 4100-35-FA Ultra Fully Automatic Rotary Arm Series Customized Stretch Wrappers are industry-leading packaging solutions designed with advanced technology since 1994. Featuring customizable frame styles including 3 Leg, 4 Leg, Rear Mount, and Wall/Post Mount options, these stretch wrappers offer a reliable pneumatic clamp, cut, and wipe device. With optional ALL ELECTRIC capabilities, these wrappers provide unmatched efficiency and functionality. Equipped with a Panasonic PLC and Touchscreen Operator Interface, the machine ensures precise controls for auto wrap cycles, reinforcement wrapping, film tension adjustment, load height detection, and more. The Super Rapid Thread II™ 20'' pre-stretch film carriage with safety features and lifetime warranty on pre-stretch rollers guarantees optimal film application. Built with a heavy-duty steel frame and automation features like film clamp mechanism and hot wire cut off, these stretch wrappers are a top choice for both consumer and institutional buyers.
Product Specifications
Armtower Design Armtower Design
Double flange bearing support system.Twin V-belt drive pulleys with belt tensioner.1-12 RPM rotational speed c/w soft start acceleration.Variable speed motor.Dust tight slip ring assembly.Final revolution deceleration and positive stop alignment.Heavy-Duty Formed/Structural Steel.Electro-static powder coated paint finish.5 Year Warranty on Steel Fabrications.
Automation Features Automation Features
Pneumatic actuated film clamp mechanism (ALL ELECTRIC is optional).Electro-mechanically actuated film tail cut/wiper arm mechanism.Impulse hot wire film cut off c/w automatic periodic cleaning cycle.
Controls Controls

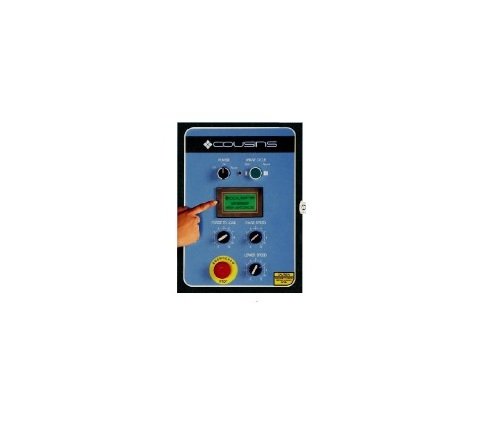

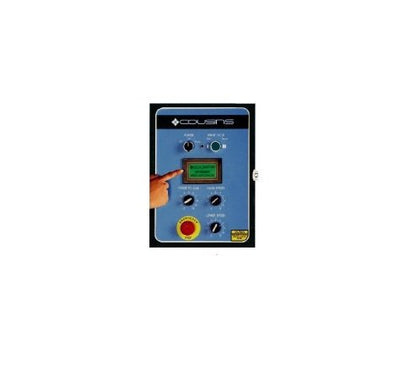

Panasonic PLC with Touchscreen Operator Interface.Power Off - On - Reset switch & Power On indicator light.Auto Wrap Cycle Start/Pause.Cycle Pause for applying top sheets.Reinforce Wrap control for mid-wrapping.Emergency Stop button.Film tension (Force-to-Load) control.Separate film carriage raise & lower speed controls.Variable rotary arm speed control.Triple beam automatic load height detection sensor for dark or shiny loads.Separate 1 to 12 revolution top & bottom wrap control.Selectable Reduced Bottom Film Force for wrapping bottom of load.A - B - C wrap program selector with capability to input and store unique wrapping parameters for each program.Remote operator control.Stack-light beacon indicates run, clear or fault.Rotary arm and film carriage elevator dynamic braking.NEMA 12 control panel enclosure.

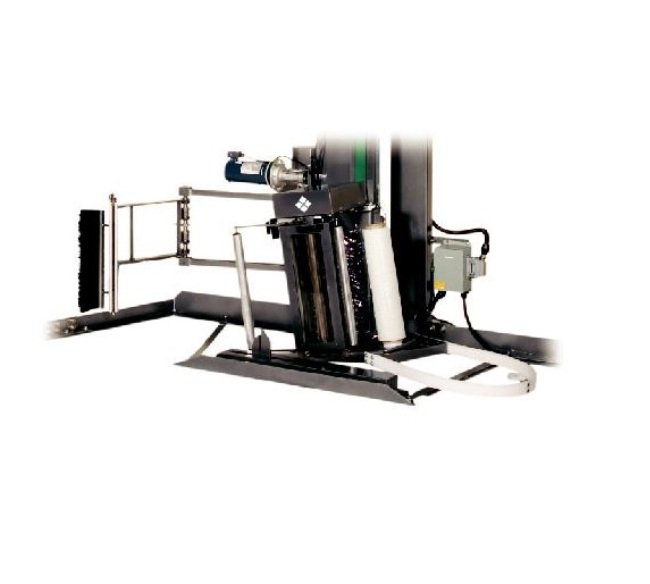

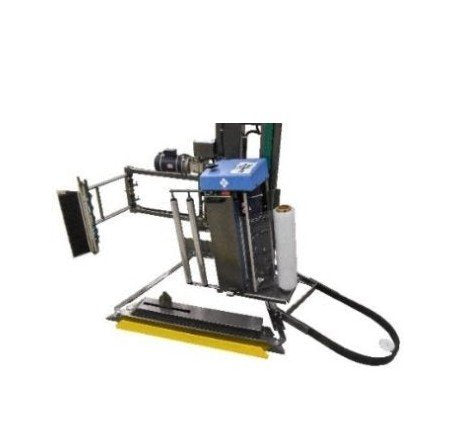

Film Carriage Elevator Film Carriage Elevator

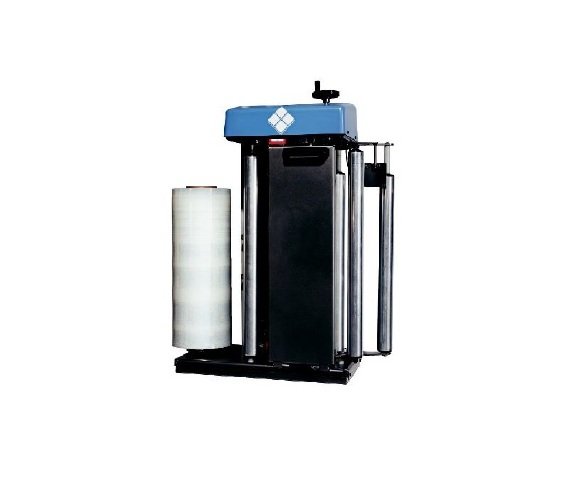

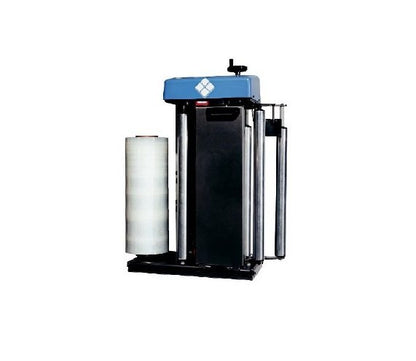

Super Rapid Thread II⢠20" pre-stretch film carriage.Safety Door with auto power cut-off switch.Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside on the load.Variable speed motor.200% standard stretch ratio, optional up to 313%.Carriage Descent Safety Shut-Off Device.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers.
Load Capacity Maximum Load Height
86 in
Load Capacity Maximum Load Length
50 in
Load Capacity Maximum Load Width
50 in
Load Capacity Minimum Load Height
24 in
Load Capacity Minimum Load Length
24 in
Load Capacity Minimum Load Width
24 in
Load Capacity Note For Load Capacity
Unlimited load weight.Larger load size options are available.
Specifications Frame Style
3 Leg - Free-Standing | 4 Leg - Free-Standing | Rear Mount | Wall or Post Mount
