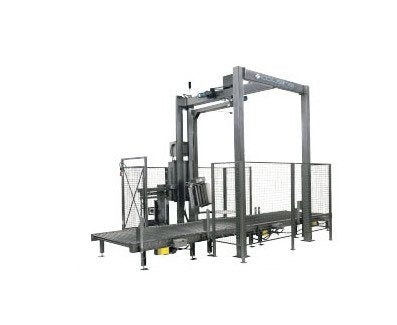

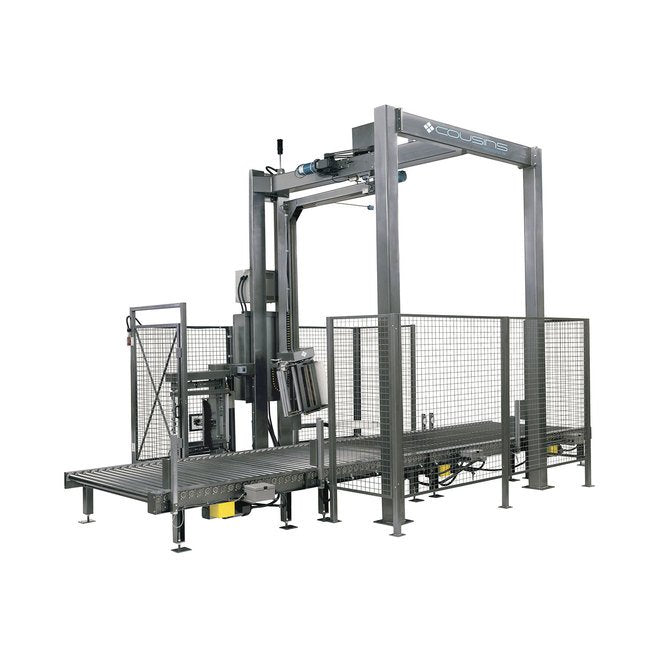

The Cousins Model 4100-45 Conveyorized Automatic Stretch Wrappers are a top-of-the-line packaging solution designed for high-volume operations. With a production speed of up to 45 loads per hour, this machine boasts features that eliminate film breaks, minimizing downtime. Its robust construction using quality components ensures reliable performance, supported by a local qualified distributor. Equipped with a PANASONIC FP-X Programmable Logic Controller (PLC) and a user-friendly HMI touchscreen interface, operators can efficiently control the wrap process, with advanced safety features like broken film detection and automatic machine reset. The film carriage elevator offers exceptional pre-stretch capabilities and a lifetime warranty on rollers, while the arm/tower design ensures smooth operation and durability. Explore additional features like top sheet dispensers, platen/hold down devices, and more to customize this stretch wrapper to your specific requirements.
Product Specifications
Additional Information Additional Information
Your system can be equipped with any device that the application requiresAdditional ConveyorsAutomatic Top Sheet DispensersTop Platen/Hold Down Device90º TransfersHeat Seal Device to Secure Film TailsTurntablesFrame Extensions for Larger Load SizesNon-standard PLC/ ControlsLifting Device to Wrap Under PalletScales
Armtower Design Armtower Design
Double flange bearing support systemTwin V-belt drive pulleys with belt tensioner1 - 14 RPM rotational speed c/w soft start acceleration1/2 HP DC variable speed motorDust tight slip ring assembly.Final revolution deceleration and positive stop alignment.Heavy-Duty Formed/Structural Steel .Electro-static powder coated paint finish.5 Year Warranty on Steel Fabrications.
Controls Controls
PANASONIC FP-X Programmable Logic Controller (PLC).HMI touchscreen operator interface Panel.Wrap bypass mode selector switch.Separate film carriage elevator raise & lower speed controls.Separate 1 to 12 revolution top & bottom wrap control.Broken film/out of film detection c/w automatic machine reset and fault beacon light.Rotary arm and film carriage elevator dynamic braking.NEMA 12 control panel and junction boxes.Dust tight slip ring assembly.Non-proprietary UL/CSA approved components.3 year warranty on components.
Conveyors Conveyors

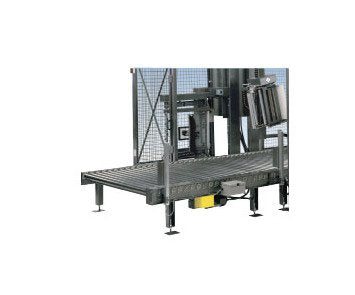

Standard system includes 5' infeed, 11' process and 5' outfeed conveyors.
Conveyors Effective Roller Width
54 in
Conveyors Rollers Diameter On 3 Inch In Centers
2.5 in
Features Features

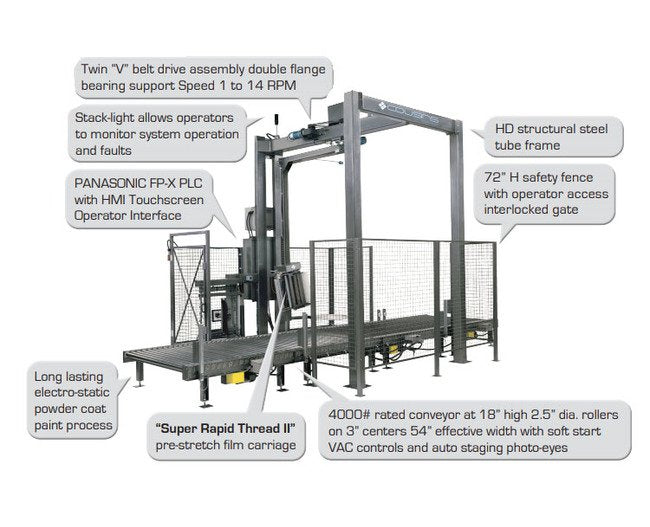

Twin "V" belt drive assembly double flange bearing support Speed 1 to 14 RPM.Stack-light allows operators to monitor system operation and faults.PANASONIC FP-X PLC with HMI Touchscreen Operator Interface.Long lasting electro-static powder coat paint process."Super Rapid Thread II"pre-stretch film carriage.4000# rated conveyor at 18" high 2.5" dia. rollers on 3" centers 54" effective width with soft start VAC controls and auto staging photo-eyes.72" H safety fence with operator access interlocked gateHD structural steel tube frame.
Film Carriage Elevator Film Carriage Elevator
Super Rapid Thread II pre-stretch film carriage.Safety door with auto cut-off switch.Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside on the load.1/2 HP DC variable speed motor.33% to 313% fixed stretch capability.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers.
Load Capacity Maximum Load Capacity
4000 lb
Load Capacity Maximum Load Height
80 in
Load Capacity Maximum Load Length
50 in
Load Capacity Maximum Load Width
50 in
Load Capacity Minimum Load Height
24 in
Load Capacity Note For Load Capacity
Larger load size options are available.
Production Speed Note For Production Speed
Process rates will vary with load size, number of wraps & conveyor speed.
Production Speed Production Speed
1 to 45 loads/hr
