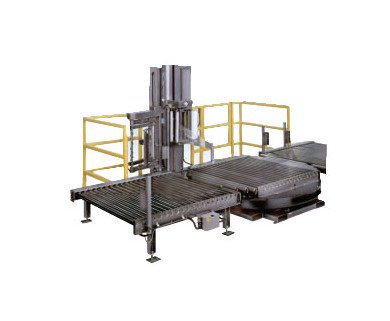

The Cousins Model 6100 Conveyorized Automatic Stretch Wrapper revolutionizes packaging efficiency with a production speed of up to 65 loads per hour. Equipped with a Super Rapid Thread II film carriage elevator, Allen-Bradley controls, and a heavy-duty turntable design, this stretch wrapper ensures seamless operation and optimal load protection. With a maximum load capacity of 4000 lb and advanced safety features, it's built for reliability and performance. Expandable with various add-on devices, this stretch wrapper is a versatile solution for packaging operations.
Product Specifications
Additional Information Additional Information
Your system can be equipped with any device that the application requiresAdditional ConveyorsAutomatic Top Sheet DispensersTop Platen/Hold Down Device90º TransfersHeat Seal Device to Secure Film TailsTurntablesFrame Extensions for Larger Load SizesNon-standard PLC/ControlsLifting Device to Wrap Under PalletScales
Controls Controls
Allen-Bradley MicroLogix 1400 PLC HMI touchscreen operator interface panel.Wrap bypass mode selector switch.Separate film carriage elevator raise & lower speed controls.Separate 1 to 12 revolution top & bottom wrap control.Broken film/out of film detection c/w automatic machine reset and fault beacon light.Rotary arm and film carriage elevator dynamic braking.NEMA 12 control panel and junction boxes Dust tight slip ring assembly.Non-proprietary UL/CSA approved components.3 Year Warranty on components.
Conveyors Conveyors
Standard system includes 5' infeed and 5' outfeed powered conveyors.
Conveyors Conveyors Standard Passline Height
18
Conveyors Effective Roller Width
54 in
Conveyors Rollers Diameter On 3 Inch In Centers
2.5 in
Features Features

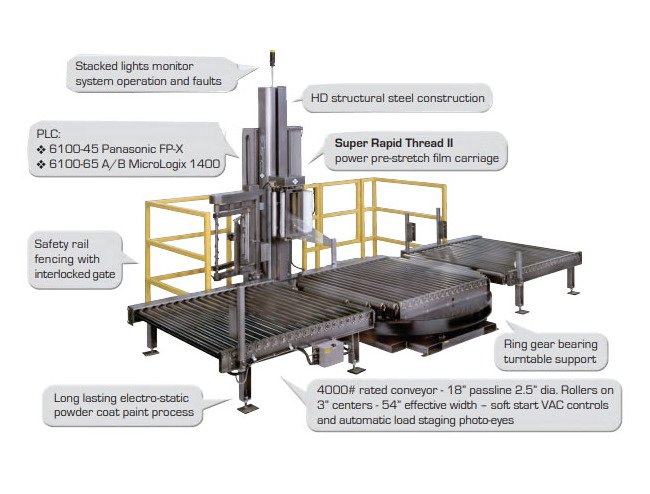

Stacked lights monitor system operation and faults.PLC: A/B MicroLogix 1400.Safety rail fencing with interlocked gate.Long lasting electro-static powder coat paint process.Soft start VAC controls and automatic load staging photo-eyes.Ring gear bearing turntable support.Super Rapid Thread II power pre-stretch film carriage.HD structural steel construction.
Film Carriage Elevator Film Carriage Elevator

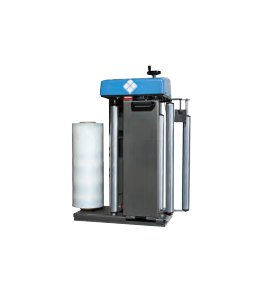

Super Rapid Thread II pre-stretch film carriage.Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside on the load.1/2 HP DC variable speed motor.33% to 313% fixed stretch capability.Carriage Descent Safety Shut-Off Device.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers.
Load Capacity Maximum Load Capacity
4000 lb
Load Capacity Maximum Load Height
80 in
Load Capacity Maximum Load Length
52 in
Load Capacity Maximum Load Width
52 in
Load Capacity Minimum Load Height
24 in
Load Capacity Note For Load Capacity
Larger load size options are available.
Production Speed Note For Production Speed
Process rates will vary with load size, number of wraps & conveyor speed.
Production Speed Production Speed
1 to 65 loads/hr
Turntabletower Design Turntabletower Design

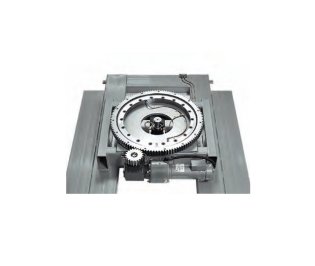

Heavy-duty ring bearing - gear/pinion drive 1 - 20 RPM 3 HP DC variable speed motor.Dust tight slip ring assembly.Final revolution deceleration and positive stop alignment.Heavy-Duty Formed/Structural Steel.Electro-static powder coated paint finish.5 Year Warranty on Steel Fabrications
