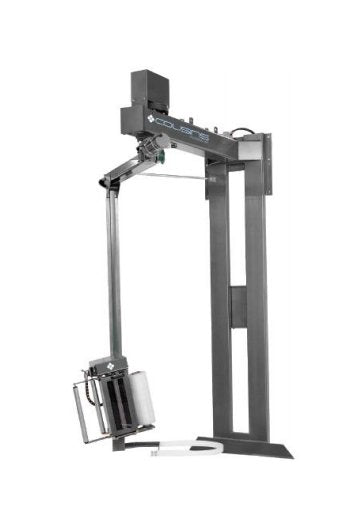

Cousins Post Mount Semi-Automatic Stretch Wrapper
Cousins Post Mount Semi-Automatic Stretch Wrapper
SKU:PAC-16487c
Efficient Cousins Post Mount Stretch Wrapper for seamless and precise packaging. Advanced controls and superior pre-stretch capabilities.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Cousins Post Mount Semi-Automatic Stretch Wrapper
$8,499.99
Quantity: 1
Claim Your Seller Account
Cousins Post Mount Semi-Automatic Stretch Wrapper
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Cousins Post Mount Overhead (Rotary Arm) Semi-Automatic Series Stretch Wrapper is a top-of-the-line packaging solution designed to streamline your wrapping process. With a robust frame style and advanced controls including Panasonic PLC, separate speed controls, and auto load height sensing, this machine ensures efficient and precise wrapping every time. The Super Rapid Thread II™ film carriage elevator offers superior pre-stretch capabilities and safety features, backed by a lifetime warranty on pre-stretch rollers. The arm/tower design features a durable construction, variable speed motor, and 5-year warranty on steel fabrications, ensuring long-lasting performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Armtower Design Armtower Design
Double flange bearing support system.Twin V-belt drive pulleys with belt tensioner.1 -12 RPM rotational speed c/w soft start acceleration.1/2 HP DC variable speed motor.Dust tight slip ring assembly.Final revolution deceleration and positive stop alignment.Heavy-duty structural steel.Electrostatic powder coated paint finish.5 year warranty on steel fabrications
Controls Controls
Panasonic PLC.Separate up/down spiral speed controls.Emergency stop button.Up only or up/down wrap program.Film tension [Force-to-Load] control.Rotary arm and film carriage elevator dynamic braking.Triple beam type auto load height sensing photo-eye, detects dark or shiny loads.Separate 1 to S revolution top & bottom wrap control.NEMA 12 control panel enclosure.3 year warranty on components.
Film Carriage Elevator Film Carriage Elevator
Super Rapid Thread II⢠20" capacity pre-stretch film carriage.Safety door with auto power cut-off switch.Special rim threading device - uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside on the load.1/2 HP DC variable speed motor.33% to 313%fixed stretch capability.Carriage descent safety shut-off device.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers
Load Capacity Maximum Load Height
86 in
Load Capacity Maximum Load Length
50 in
Load Capacity Maximum Load Width
50 in
Load Capacity Note For Load Capacity
Unlimited load weight.Larger load size options are available.
Specifications Control Panel Current
15 A
Specifications Control Panel Frequency
60 Hz
Specifications Control Panel Phase
1
Specifications Control Panel Voltage
115 V
Specifications Frame Style
Post Mount
