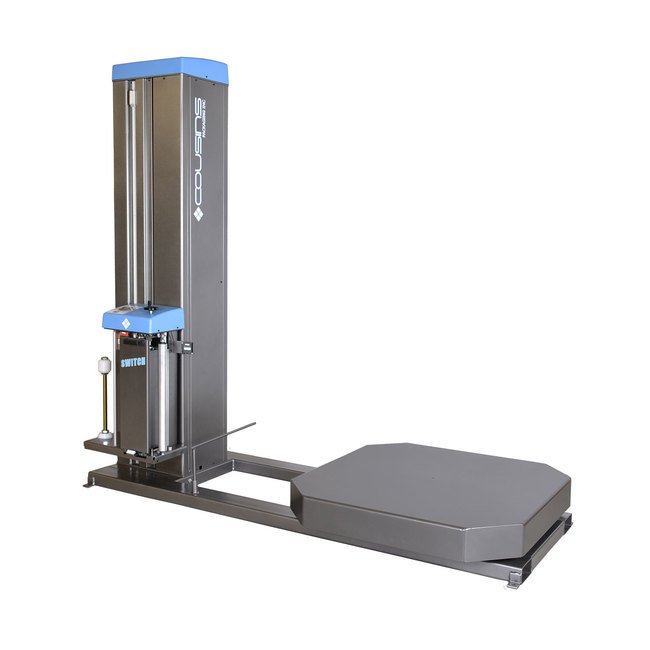

Cousins SWITCH HP Turntable
Cousins SWITCH HP Turntable
SKU:PAC-6c24de
Achieve precision wrapping with the Cousins SWITCH HP Turntable. Maximize efficiency, safety, and load capacity.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Cousins SWITCH HP Turntable
$5,999.99
Quantity: 1
Claim Your Seller Account
Cousins SWITCH HP Turntable
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

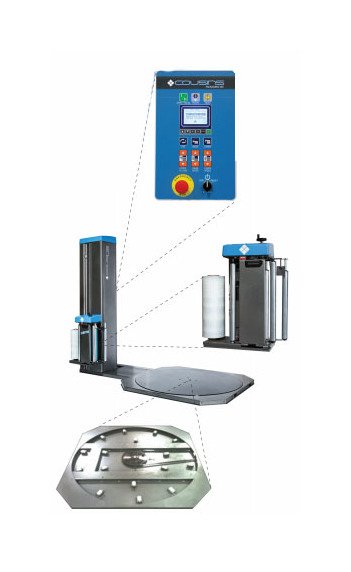

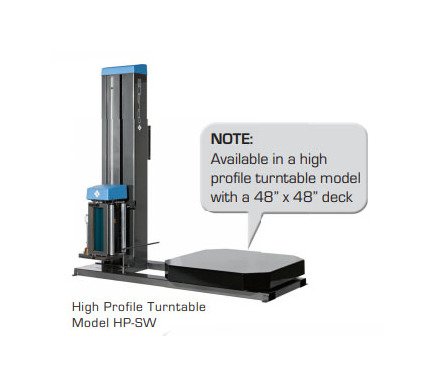

The Cousins SWITCH High Profile (HP) Turntable Semi-Automatic Stretch Wrapper offers unparalleled efficiency and reliability for your packaging needs. With a 48" x 48" deck, this wrapper can handle loads up to 4500 lbs with ease. Featuring advanced controls, a Super Rapid Thread II™ Film Carriage Elevator, and a durable tower design, this wrapper ensures consistent and secure wrapping every time. The low profile turntable, AC motors, and LCD operator interface enhance user experience, while meeting strict industry standards for quality and performance.
Product Specifications
Controls Controls
LCD operator interface with diagnostics.Cycle pause & reinforce wrap.Separate up/down spiral speed controls.3 separate wrap programs. Selectable reduced film tension parameters for wrapping top and/or bottom of light loads. Emergency stop button.3 year warranty on components.
Features Features
Less film slippage means more consistent stretch and the "sticky" side of the film will always be against both the rubber rollers and the load where it belongs.All AC motors.Control panel with LCD operator interface including helpful diagnostics.
Film Carriage Elevator Film Carriage Elevator
Super Rapid Thread II⢠20" capacity pre-stretch film carriage. Safety door with auto power cut-off switch.Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside on the load. 1/2 HP AC variable speed motor.33% to 313% fixed stretch capability. Carriage descent safety shut-off device.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers
Load Capacity Maximum Diagonal Load Size
96 in
Load Capacity Maximum Load Capacity
4500 lb
Load Capacity Maximum Load Height
80 in
Load Capacity Maximum Load Length
67 in
Load Capacity Maximum Load Width
67 in
Low Profile Turntable Low Profile Turntable
1 - 12 RPM with soft start acceleration.1/2 HP AC variable speed drive. Heavy-duty surround deck.Forklift tubes - front and rear. Maintenance free 48 support wheels. Optional loading ramp 60" long x 48" wide complete with 10" level porch area available.
Specifications Control Panel Current
15 A
Specifications Control Panel Frequency
60 Hz
Specifications Control Panel Phase
1
Specifications Control Panel Voltage
115 V
Specifications Options

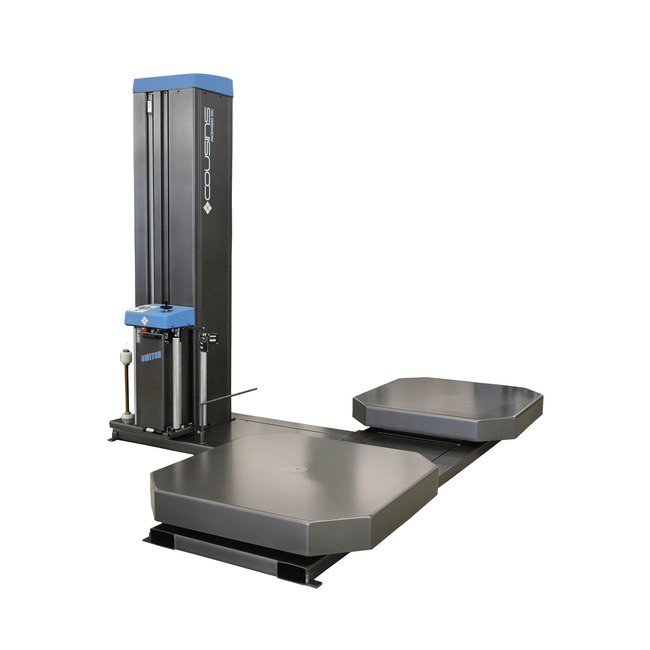

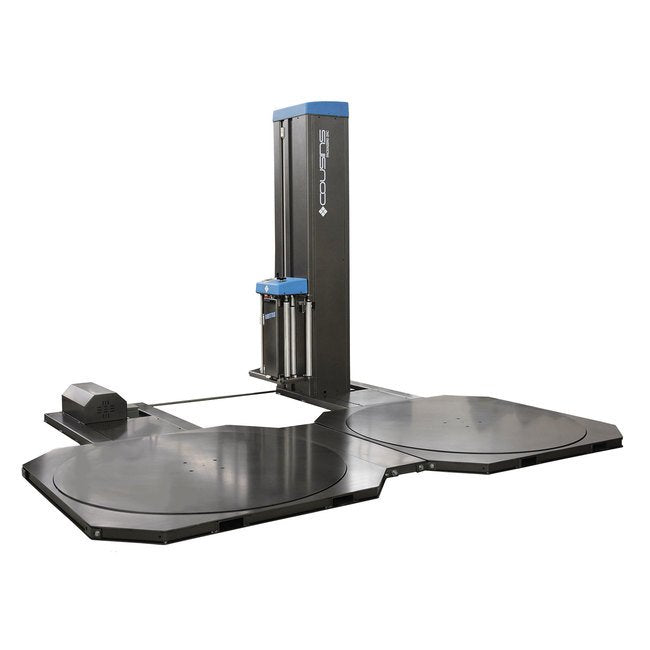

Switch Dual Turntable HP
Specifications Turntable Capacity
4500 lb
Specifications Turntable Diameter
65 in
Tower Design Tower Design
Fully enclosed & guarded motors.No exposed cables.Heavy-duty formed/structural steel.Electro-static powder coated paint finish.5 year warranty on steel fabrications.
