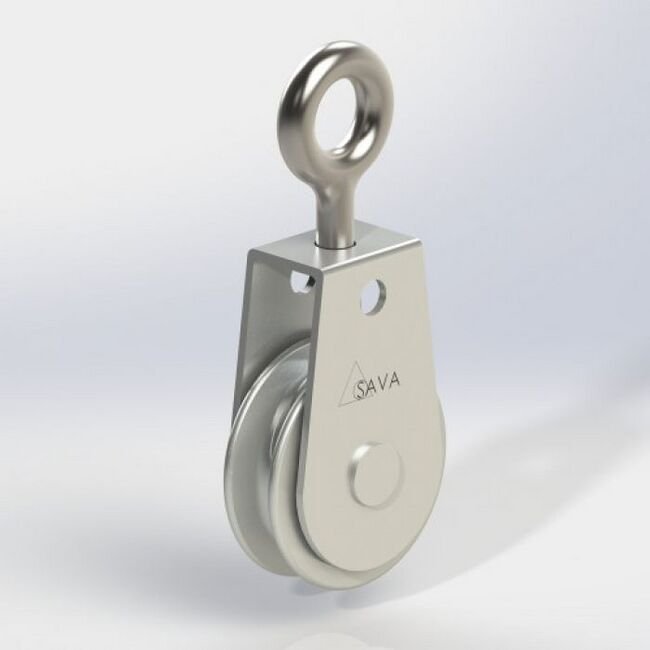

CP Series 0.095 Inch (in) Inner Groove Radius Stainless Steel Bracket Pulley

Name: CP Series 0.095 Inch (in) Inner Groove Radius Stainless Steel Bracket Pulley
Brand: Carl Stahl Sava Industries
SKU: CPS-c54f73
Price: 49.99 USD
Availability: OutOfStock

SKU:CPS-c54f73

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our quality bracket systems are designed to support your processes. Available in different bracket and pulley sizes, they can be top, side or eye mounted. The maximum safe working load is determined by the end user. We generally advise a 3:1 safety factor at least (exclusive of any shock load). For large volumes, specially designed, customized brackets can be manufactured.

Product Specifications

Note

This product has a minimum quantity of 5.

Technical Specs Bearing Thickness

0.437 in

Technical Specs Bore Condition

Ball Bearing Sealed

Technical Specs Bracket Material

Stainless Steel

Technical Specs Bracket Style

Eye Mount

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Plated Steel

Technical Specs Cable Type

Bracket

Technical Specs Groove Width

0.095 in

Technical Specs Inner Groove Radius

0.095 in

Technical Specs Load Rating

175 in

Technical Specs Maximum Mating Cable Diameter

0.188 in

Technical Specs Outside Diameter

1.25 in

Technical Specs Part

CPS4088

Technical Specs Thickness

0.375 in

CP Series 0.095 Inch (in) Inner Groove Radius Stainless Steel Bracket Pulley
