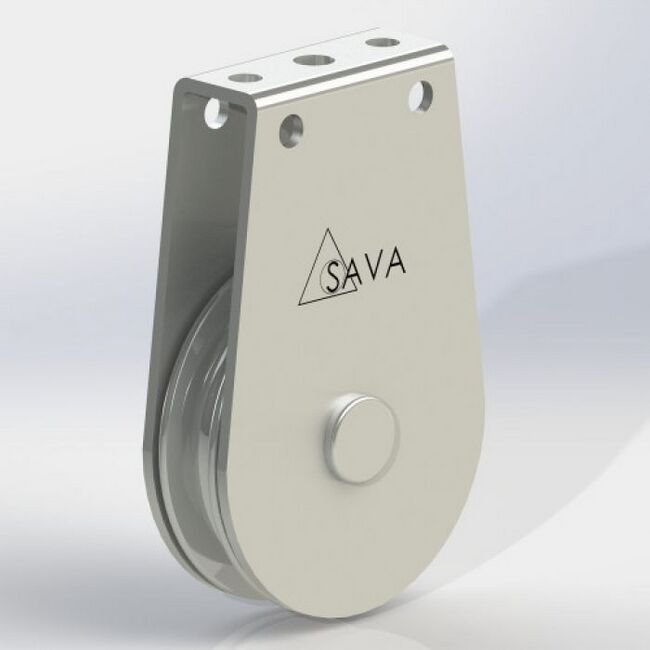

CP Series 0.125 Inch (in) Inner Groove Radius Plated Steel Bracket Pulley

Name: CP Series 0.125 Inch (in) Inner Groove Radius Plated Steel Bracket Pulley
Brand: Carl Stahl Sava Industries
SKU: CPS-4396e9
Price: 49.99 USD
Availability: OutOfStock

SKU:CPS-4396e9

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our quality bracket systems are designed to support your processes. Available in different bracket and pulley sizes, they can be top, side or eye mounted. The maximum safe working load is determined by the end user. We generally advise a 3:1 safety factor at least (exclusive of any shock load). For large volumes, specially designed, customized brackets can be manufactured.

Product Specifications

Note

This product has a minimum quantity of 5.

Technical Specs Bearing Thickness

0.500 in

Technical Specs Bore Condition

Ball Bearing

Technical Specs Bracket Material

Plated Steel

Technical Specs Bracket Style

Side Mount | Top Mount

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Plated Steel

Technical Specs Cable Type

Bracket

Technical Specs Groove Width

0.125 in

Technical Specs Inner Groove Radius

0.125 in

Technical Specs Load Rating

290 in

Technical Specs Maximum Mating Cable Diameter

0.250 in

Technical Specs Outside Diameter

1.75 in

Technical Specs Part

CP6125

Technical Specs Thickness

0.437 in

CP Series 0.125 Inch (in) Inner Groove Radius Plated Steel Bracket Pulley
