CP Series 0.5 Inch (in) Outside Diameter Standard Ball Bearing Plated Steel Pulley
CP Series 0.5 Inch (in) Outside Diameter Standard Ball Bearing Plated Steel Pulley
SKU:CPS-2cc798
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CP Series 0.5 Inch (in) Outside Diameter Standard Ball Bearing Plated Steel Pulley
$49.99
Quantity: 1
Claim Your Seller Account
CP Series 0.5 Inch (in) Outside Diameter Standard Ball Bearing Plated Steel Pulley
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

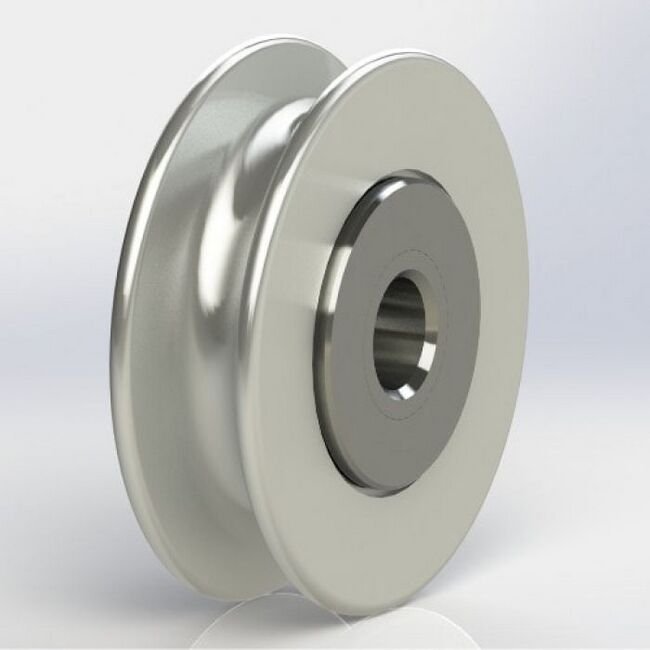

Zinc plated steel pulleys are an economical line of pulleys designed for use with small cables. High quality precision steel ball-bearings, case hardened steel races, machined raceways, heat resistance and light lubrication are the main features of this pulley.

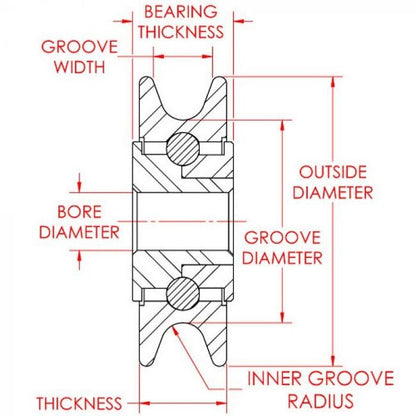

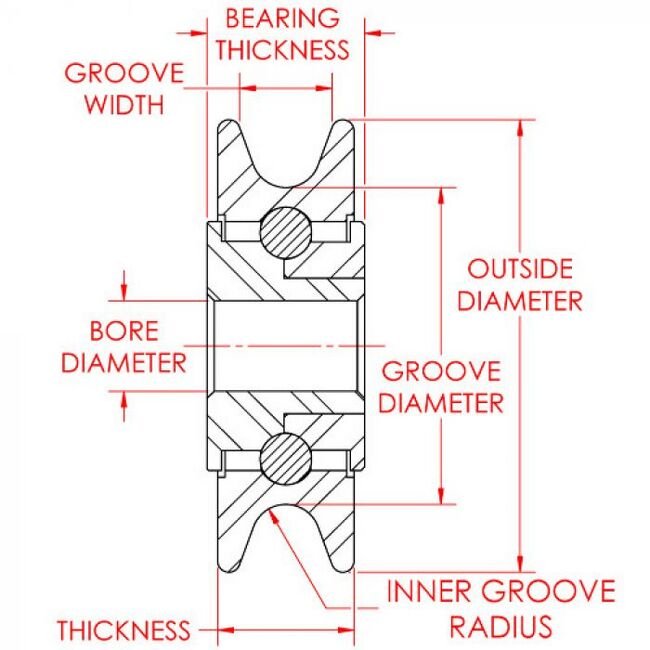

Product Specifications
Technical Specs Bearing Thickness
0.188 in
Technical Specs Bore Condition
Ball Bearing
Technical Specs Bore Diameter
0.125 in
Technical Specs Brands
Carl Stahl Sava Industries, Inc.
Technical Specs Cable Material
Plated Steel
Technical Specs Cable Type
Standard
Technical Specs Groove Width
0.096 in
Technical Specs Inner Groove Radius
0.025 in
Technical Specs Load Rating
36
Technical Specs Maximum Mating Cable Diameter
0.047 in
Technical Specs Outer Groove Diameter
0.38 in
Technical Specs Outside Diameter
0.5 in
Technical Specs Part
CP2038
Technical Specs Thickness
0.156 in
