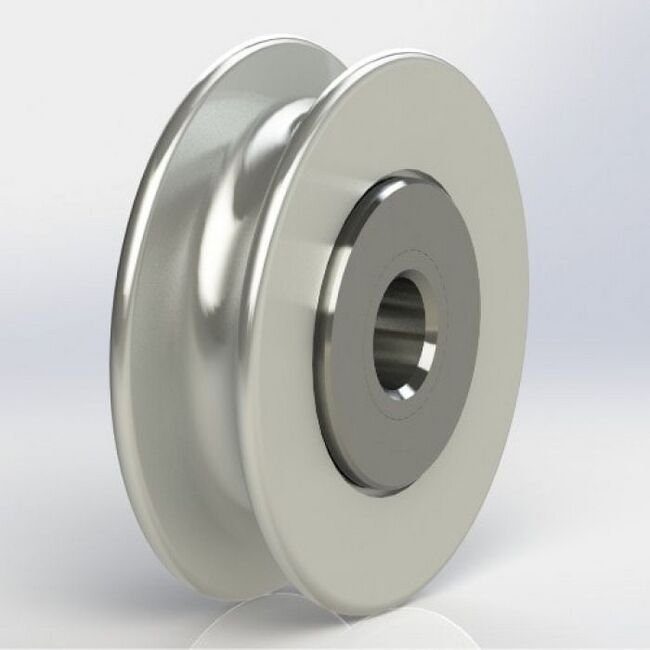

CP Series 1.06 Inch (in) Outside Diameter Standard Ball Bearing Plated Steel Pulley

Name: CP Series 1.06 Inch (in) Outside Diameter Standard Ball Bearing Plated Steel Pulley
Brand: Carl Stahl Sava Industries
SKU: CPS-fa4cc0
Price: 49.99 USD
Availability: OutOfStock

SKU:CPS-fa4cc0

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Zinc plated steel pulleys are an economical line of pulleys designed for use with small cables. High quality precision steel ball-bearings, case hardened steel races, machined raceways, heat resistance and light lubrication are the main features of this pulley.

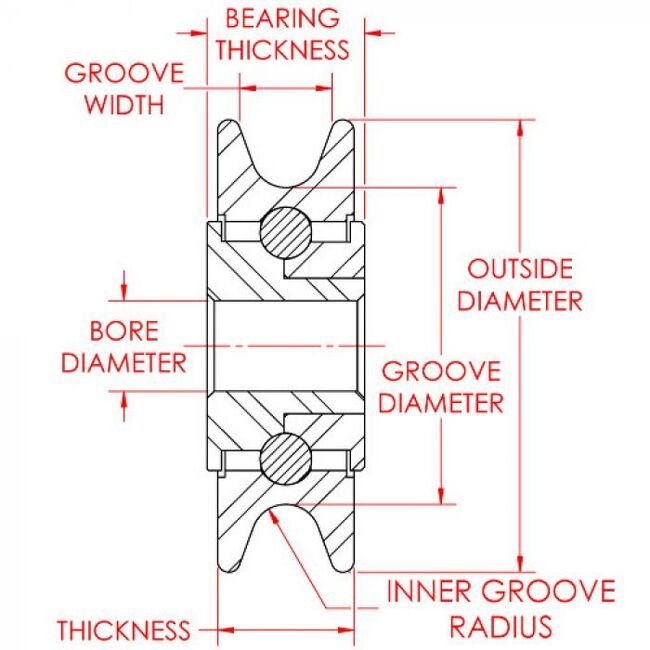

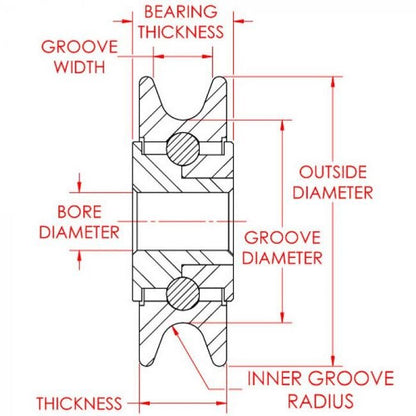

Product Specifications

Technical Specs Bearing Thickness

0.281 in

Technical Specs Bore Condition

Ball Bearing

Technical Specs Bore Diameter

0.187 in

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Plated Steel

Technical Specs Cable Type

Standard

Technical Specs Groove Width

0.05 in

Technical Specs Inner Groove Radius

0.05 in

Technical Specs Load Rating

175

Technical Specs Maximum Mating Cable Diameter

0.094 in

Technical Specs Outer Groove Diameter

0.875 in

Technical Specs Outside Diameter

1.06 in

Technical Specs Part

CP3088

Technical Specs Thickness

0.25 in
