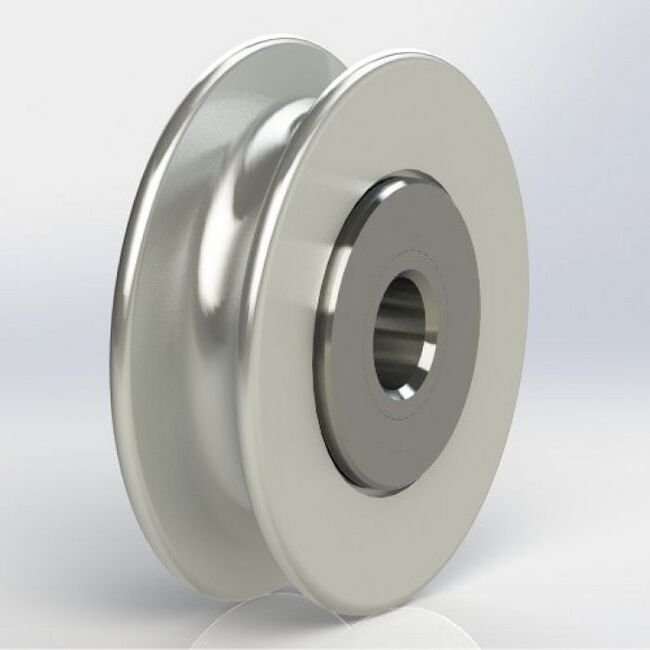

CP Series 1.25 Inch (in) Outside Diameter Standard Ball Bearing Plated Steel Pulley

Name: CP Series 1.25 Inch (in) Outside Diameter Standard Ball Bearing Plated Steel Pulley
Brand: Carl Stahl Sava Industries
SKU: CPS-421c52
Price: 49.99 USD
Availability: OutOfStock

SKU:CPS-421c52

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Zinc plated steel pulleys are an economical line of ball-bearing pulleys offered in our wire rope pulley catalogue designed for use with small cables. High-quality precision steel pulley ball-bearings, case hardened steel races, machined raceways, heat resistance and light lubrication are the main features of this mount pulley. Sava is an industry leading steel ball-bearing pulley supplier.Pulley diameters and other specs on these ball-bearing cable pulleys are listed.

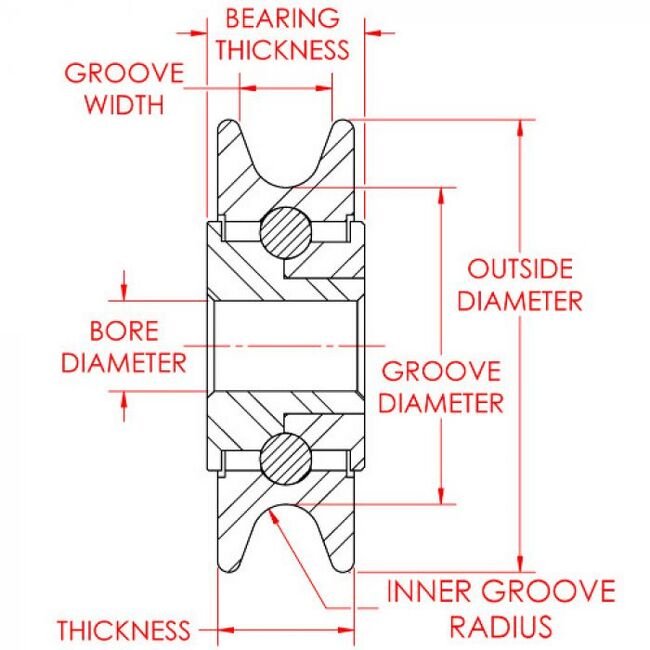

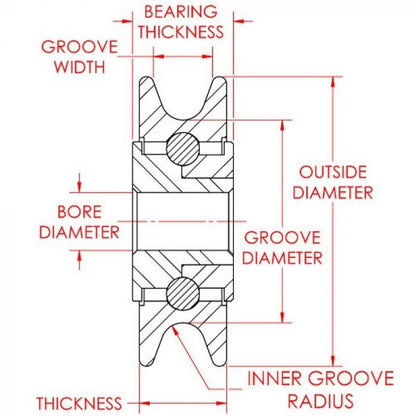

Product Specifications

Technical Specs Bearing Thickness

0.437 in

Technical Specs Bore Condition

Ball Bearing

Technical Specs Bore Diameter

0.25 in

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Plated Steel

Technical Specs Cable Type

Standard

Technical Specs Groove Width

0.095 in

Technical Specs Inner Groove Radius

0.095 in

Technical Specs Load Rating

175

Technical Specs Maximum Mating Cable Diameter

0.188 in

Technical Specs Outer Groove Diameter

0.875 in

Technical Specs Outside Diameter

1.25 in

Technical Specs Part

CP4088

Technical Specs Thickness

0.375 in
