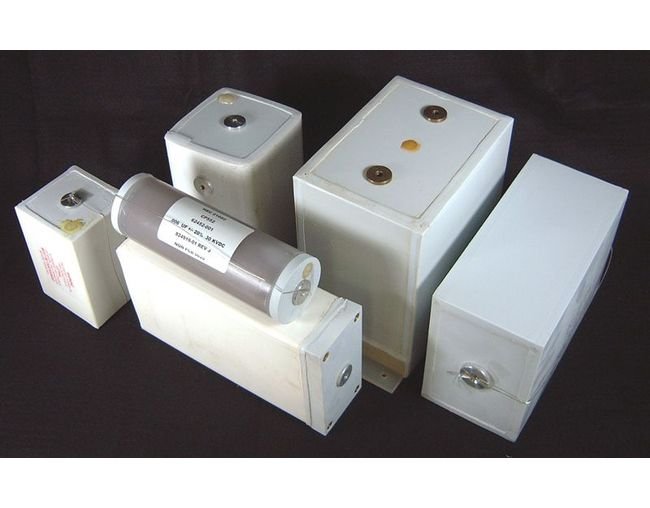

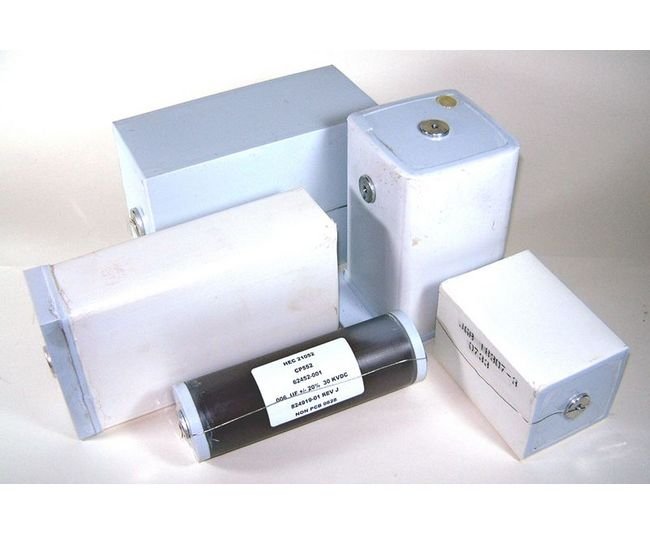

CP Series High Voltage Oil-Filled Capacitor
CP Series High Voltage Oil-Filled Capacitor
SKU:OIL-8b7cf4
High-voltage oil-filled capacitors with 0.01-1 µF capacitance & up to 40,000 V DC. Reliable performance in extreme temperatures. A must-have for DC filter applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CP Series High Voltage Oil-Filled Capacitor
$49.99
Quantity: 1
Claim Your Seller Account
CP Series High Voltage Oil-Filled Capacitor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CP Series Oil-Filled Capacitors offer superior performance in high-voltage applications, with a capacitance range from 0.01 to 1 µF and a DC voltage rating of up to 40,000 V. Featuring welded polypropylene cases and environmentally compatible dielectrics, these capacitors ensure reliable operation in temperatures ranging from -40 to +90 ºC. With insulation resistance of 25,000 MΩ, they are ideal for DC filter applications, meeting stringent industry standards for quality and performance.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.1 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

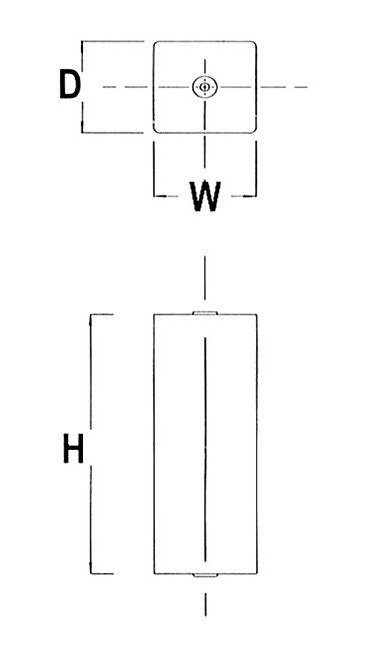

Specifications Dimension D
4.25
Specifications Dimension H
10
Specifications Dimension W
4.25
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
40000 V
