CP Series High Voltage Oil-Filled Capacitors
CP Series High Voltage Oil-Filled Capacitors
SKU:OIL-e4463c
High voltage oil-filled capacitors with 0.01-1 µF capacitance, 75,000 VDC, and welded polypropylene cases for durability. Ideal for institutional applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
CP Series High Voltage Oil-Filled Capacitors
$129.99
Quantity: 1
Claim Your Seller Account
CP Series High Voltage Oil-Filled Capacitors
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

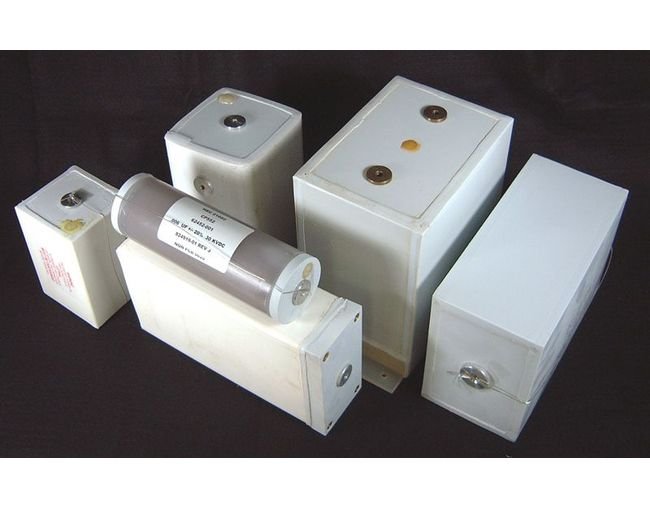

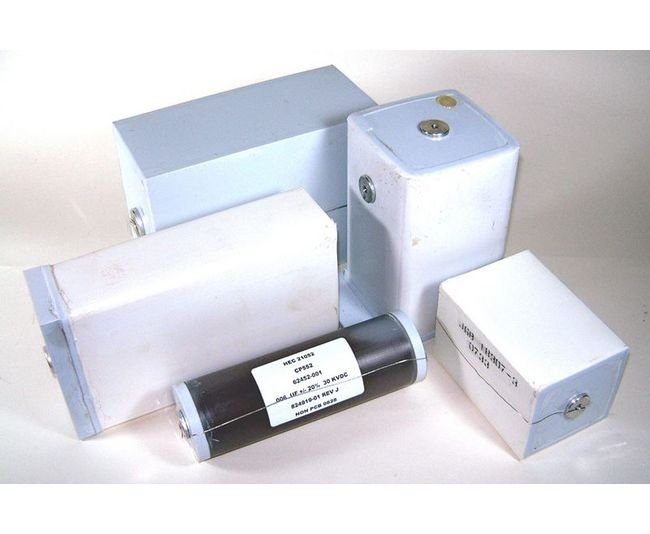

The CP Series Oil-Filled Capacitors offer exceptional performance for high voltage applications, with a capacitance range of 0.01 to 1 µF and a voltage rating of 75,000 VDC. Encased in welded polypropylene for durability, these capacitors operate reliably within a wide temperature range (-40 to +90 ºC) with excellent insulation resistance. The dielectric composition of kraft paper and polypropylene, impregnated with environmentally friendly materials, ensures stability and safety. With strict adherence to AC ripple voltage limits, these capacitors provide reliable DC filtering and high-performance results for demanding institutional applications.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.1 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

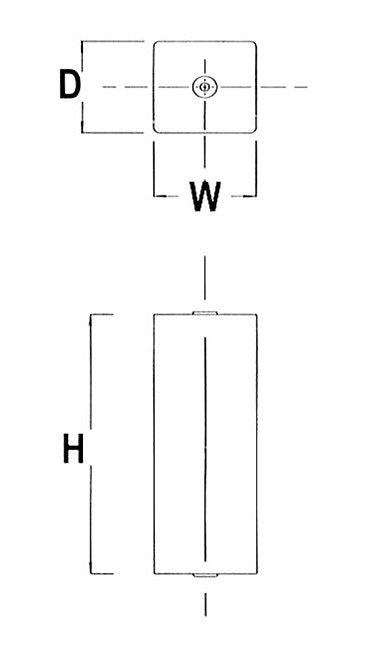

Specifications Dimension D
4.50
Specifications Dimension H
22
Specifications Dimension W
4.63
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
75000 V
