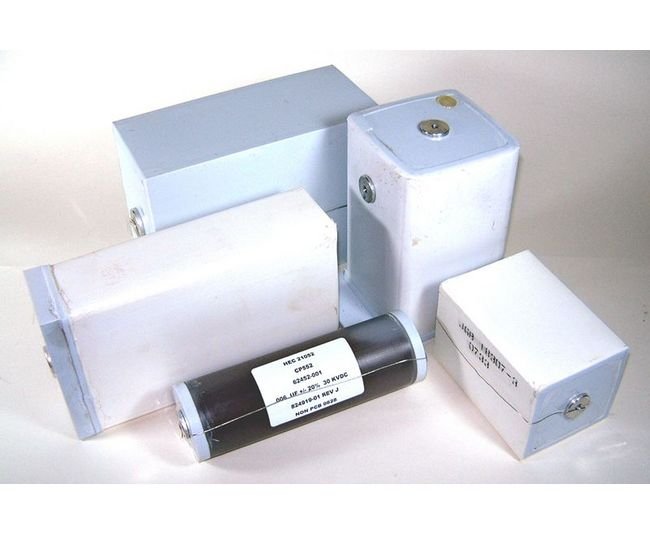

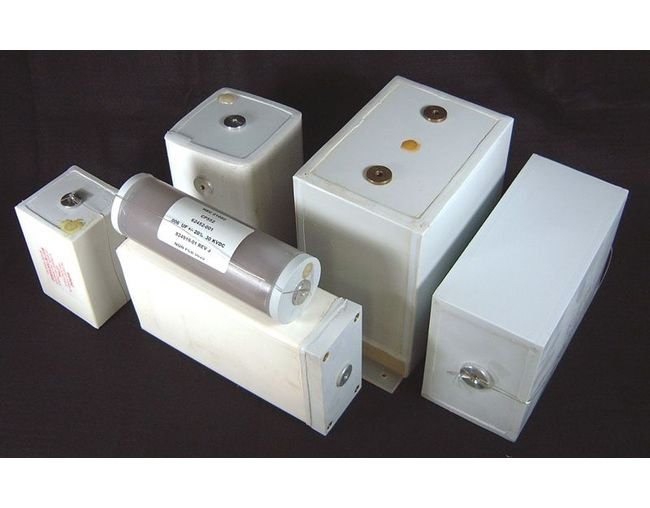

CP Series Oil-Filled High Voltage Capacitors
CP Series Oil-Filled High Voltage Capacitors
SKU:OIL-e45d9a
Reliable CP Series Oil-Filled High Voltage Capacitors with 0.01 to 1 µF capacitance & 10,000 to 100,000 VDC for demanding applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
CP Series Oil-Filled High Voltage Capacitors
$39.99
Quantity: 1
Claim Your Seller Account
CP Series Oil-Filled High Voltage Capacitors
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CP Series Oil-Filled High Voltage Capacitors offer reliable DC filtering with a capacitance range of 0.01 to 1 µF and a high voltage range of 10,000 to 100,000 VDC. Featuring welded polypropylene cases, these capacitors ensure robust construction and durability. With a capacitance tolerance of ±10%, operating temperatures of -40 to +90 ºC, and exceptional insulation resistance of 25000 MΩ, these capacitors are ideal for demanding applications. The kraft paper and polypropylene dielectric with an environmentally compatible impregnant deliver superior performance. Compliant with industry standards, these capacitors are a secure choice for both consumer and institutional requirements.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.5 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

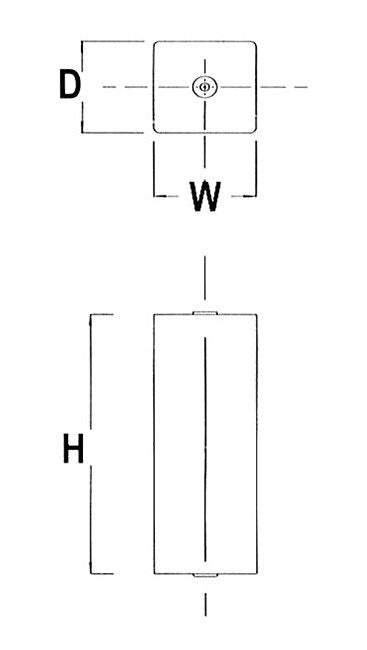

Specifications Dimension D
4.25
Specifications Dimension H
12
Specifications Dimension W
4.25
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
20000 V
