CPD Grade Pleated Polypropylene Depth Cartridges - High Flow Filter

CPD Grade Pleated Polypropylene Depth Cartridges - High Flow Filter

PLE-288461

High-efficiency CPD Grade Pleated Polypropylene Depth Cartridges for superior dirt holding capacity and extended filter life in high flow applications.

$39.99
$39.99
Sale

Initiate Order

CPD Grade Pleated Polypropylene Depth Cartridges - High Flow Filter

CPD Grade Pleated Polypropylene Depth Cartridges - High Flow Filter

$39.99

Quantity: 1

Claim Your Seller Account

CPD Grade Pleated Polypropylene Depth Cartridges - High Flow Filter

CPD Grade Pleated Polypropylene Depth Cartridges - High Flow Filter

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

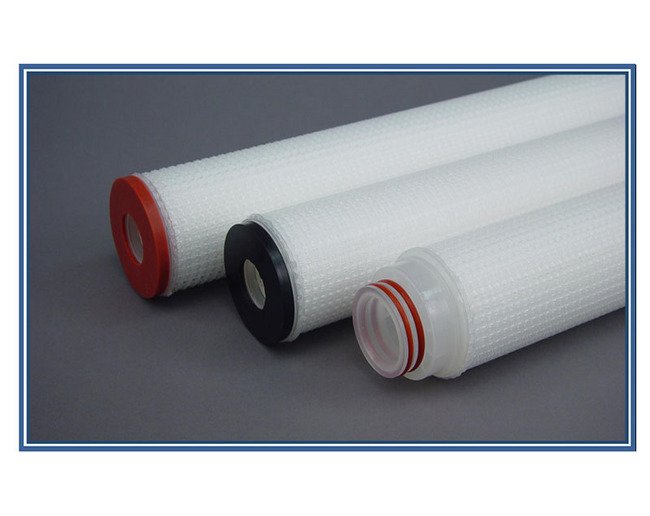

The CPD Grade Pleated Polypropylene Depth Cartridges are expertly engineered for maximum efficiency in clarifying applications with high flow capacity requirements. Featuring high loft Melt-blown polypropylene depth media, these cartridges provide exceptional flow characteristics and superior dirt holding capacity thanks to their high internal porosity. Constructed with fine polypropylene fibers bonded together to prevent fiber release, these cartridges offer 99.9% efficiency, making them a cost-effective filtration solution designed to prolong the life of final filters. Ideal for institutional and government buyers seeking premium performance and value.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Construction Materials Center Core Material
Polypropylene
Construction Materials End Caps Material
Polypropylene
Construction Materials Filtration Media
Polypropylene
Construction Materials Filtration Media Support Material
Polypropylene
Construction Materials Note
All materials of construction are FDA accepted.
CONSTRUCTION MATERIALS OUTER SUPPORT CAGE Material
Polypropylene
Construction Materials O Rings Material
Buna | EP | PTFE® Encapsulated Silicone | PTFE® Encapsulated Viton® | Silicone | Viton®
Construction Materials Sealing Method
Thermal Bonding
Dimensions Filtration Area Per 10 Length
6.5 ft² | 0.60 m²
Dimensions Nominal Length
10 to 40 in | 25.4 to 101.6 cm
Dimensions Nominal Outside Diameter
2.50 in | 6.35 cm
Flow Rate 0

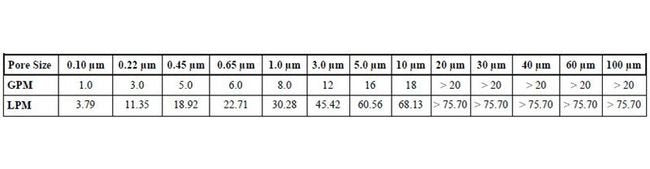

See the Flow Rate table in more image which represents typical water flow at a one psi (69 mbar) pressure differential across a single 10 inch cartridge element. The test fluid is water at ambient temperature. Extrapolation for housings with multiple elements and higher pressure drops is acceptable, but as flows increase the pressure drop of the housing becomes more apparent.
Maximum Operating Parameters Forward Differential Pressure At 20
50 psi | 3.4 bar
Maximum Operating Parameters Operating Temperature At 10 Psid 06
175 ºF | 80 ºC
Maximum Operating Parameters Reverse Differential Pressure At 20
20 psi | 1.4 bar
Specifications 316 Ss Ring
No Ring
Specifications Cartridge Length
30 in | 76.2 cm
Specifications End Caps
213/119 Both Ends | 213/119 w/ Plug | 2-222 O-ring / Flat | 2-222 O-ring with Spear | 2-226 O-ring / Flat | 2-226 O-ring with Spear | Flat Gasket, double open end
Specifications Flow Rate
16 gpm | 60.56 lpm
Specifications Pore Size
5.0 µm
