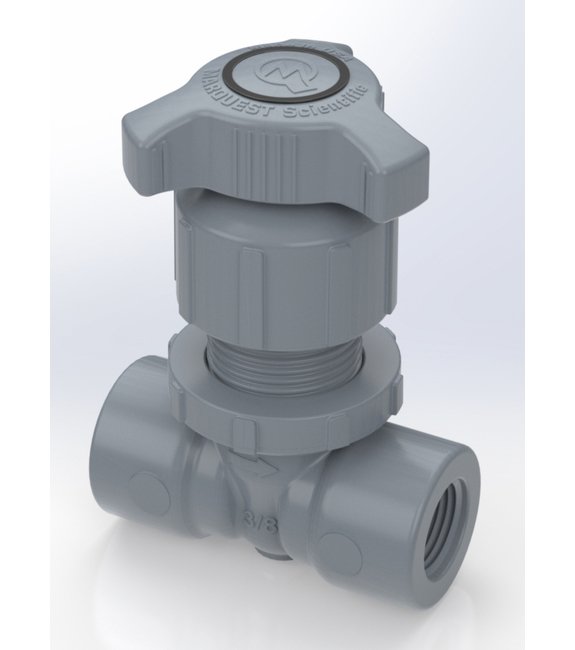

CPVC 3/8" Female NPT Globe Needle Valve - Throttle Master Series

Name: CPVC 3/8" Female NPT Globe Needle Valve - Throttle Master Series
Brand: Marquest Scientific, Inc.
SKU: PLA-87c7bc
Price: 74.95 USD
Availability: OutOfStock

SKU:PLA-87c7bc

Achieve precise flow control with the CPVC 3/8" Female NPT Globe Needle Valve - Throttle Master Series. Chemical resistant, corrosion-free, and high-purity construction.

$74.95

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CPVC 3/8" x 3/8" Female NPT Globe Needle Valve from the Throttle Master Series offers precise flow control and fine adjustment for corrosive and high purity fluids. With a globe pattern and 24 pitch metering thread, this valve ensures 20% finer metering control. It features PTFE sealing, chemical resistance, and high purity construction with no elastomers, metals, or lubricants, guaranteeing no corrosion or contamination. Integrally designed for panel mounting without fasteners, this valve is suitable for panel thicknesses from 1/16" to 1/2". Compliance with NSF Std 14 & 61 Ratings ensures quality and safety.

Product Specifications

Materials Of Construction 0

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

Specifications Cv Factor

0.310

Specifications Inlet X Outlet

3/8" Female NPT

Specifications List Price

74.95 USD

Specifications Materials

CPVC, PTFE Seal

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.

Specifications Style

Globe, Straight Pattern
