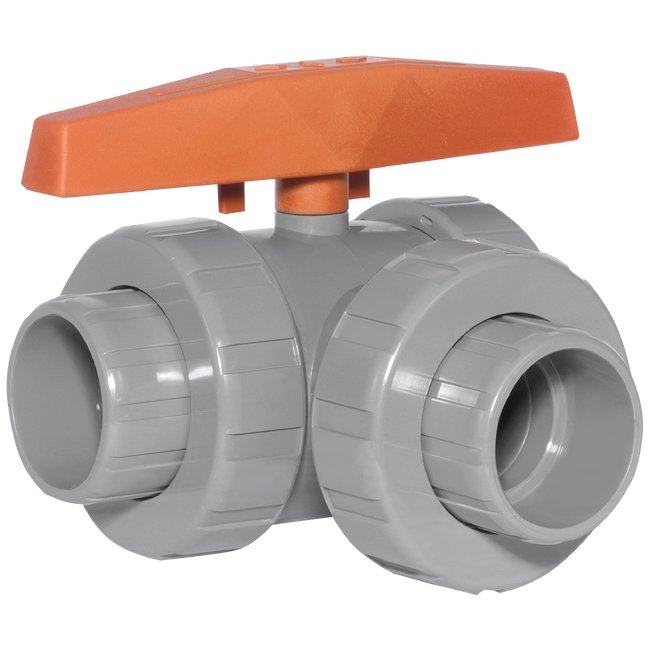

CPVC 3-Way Lateral True Union Ball Valve w/EPDM O-Rings, 1-1/2"
CPVC 3-Way Lateral True Union Ball Valve w/EPDM O-Rings, 1-1/2"
SKU:TRU-7e5b6a
Durable 1-1/2" CPVC 3-Way Lateral True Union Ball Valve w/EPDM O-Rings, ideal for diverting flow in commercial and institutional setups.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CPVC 3-Way Lateral True Union Ball Valve w/EPDM O-Rings, 1-1/2"
$49.99
Quantity: 1
Claim Your Seller Account
CPVC 3-Way Lateral True Union Ball Valve w/EPDM O-Rings, 1-1/2"
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1-1/2" CPVC 3-Way Lateral True Union Ball Valve with EPDM O-Rings is a versatile solution designed for diverting flow from the center port to either left or right ports without an OFF position. Featuring socket/threaded end connections, this valve is crafted from durable CPVC with EPDM seals, ensuring reliable performance. With a Cv Factor of 30 and sizes ranging from 1/2" to 6", this valve is rated at 150PSI. It meets stringent industry standards for quality and durability, making it ideal for various applications in both commercial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
4.75 in | 120.65 mm
Specifications B
4.30 in | 109.22 mm
Specifications Body Material
CPVC
Specifications C
5.87 in | 149.10 mm
Specifications Cv Factor
30
Specifications E
4.00 in | 101.60 mm
Specifications End Connection
Socket/Threaded
Specifications F
6.00 in | 152.40 mm
Specifications G
11.85 in | 300.99 mm
Specifications H
4.19 in | 106.43 mm
Specifications Seals
EPDM
Specifications Size
1-1/2"
