CPVC Angle Needle Valve 3/8" x 3/8" Female NPT
CPVC Angle Needle Valve 3/8" x 3/8" Female NPT
SKU:PLA-5bbf74
Achieve precise flow control with the CPVC Angle Needle Valve, ideal for corrosive & high purity fluids. Meets NSF Std 14 & 61 Rating for CPVC.
Regular price
$74.95
Regular price
Sale price
$74.95
Unit price
per
Initiate Order
CPVC Angle Needle Valve 3/8" x 3/8" Female NPT
$74.95
Quantity: 1
Claim Your Seller Account
CPVC Angle Needle Valve 3/8" x 3/8" Female NPT
$74.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

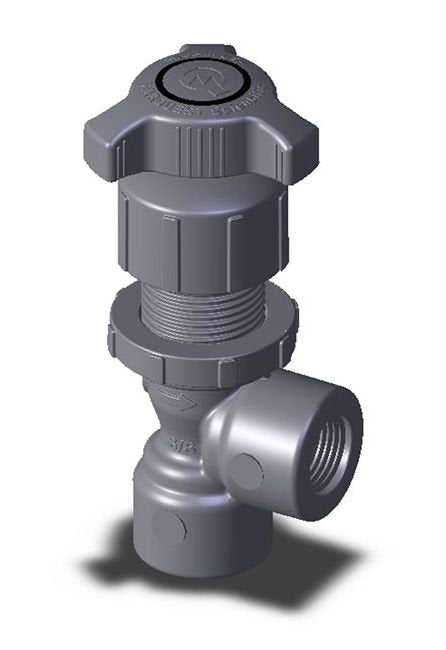

The Throttle Master 3/8" x 3/8" Female NPT Angle Needle Valve-CPVC offers precise flow control and fine adjustment for corrosive and high purity fluids. This valve features a 90° angle pattern, 24 pitch metering thread for 20% finer control, PTFE sealing, chemical resistance, and high purity integration. With no elastomers, metals, or lubricants, it ensures no corrosion or contamination. It meets NSF Std 14 & 61 Rating for CPVC, making it ideal for institutional applications requiring high standards of performance and reliability.
Product Specifications
Materials Of Construction 0
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Specifications Cv Factor
0.426
Specifications Inlet X Outlet
3/8" Female NPT
Specifications List Price
74.95 USD
Specifications Materials
CPVC, PTFE Seal
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Angle, 90° Pattern
