CPVC Angle Needle Valve - Throttle Master 'L Series'
CPVC Angle Needle Valve - Throttle Master 'L Series'
SKU:PLA-287eef
Durable CPVC 1/4" Female NPT Angle Needle Valve with L Series Needle for precise control and chemical resistance.
Regular price
$94.95
Regular price
Sale price
$94.95
Unit price
per
Initiate Order
CPVC Angle Needle Valve - Throttle Master 'L Series'
$94.95
Quantity: 1
Claim Your Seller Account
CPVC Angle Needle Valve - Throttle Master 'L Series'
$94.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

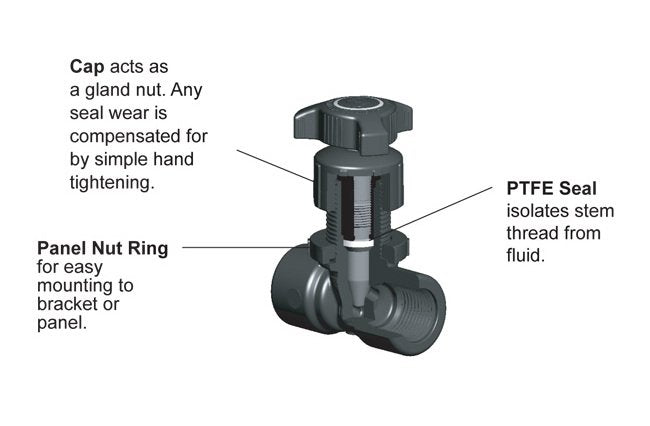

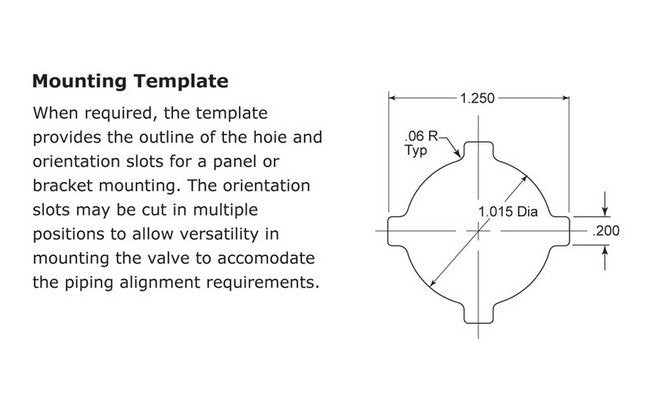

The CPVC 1/4" x 1/4" Female NPT Angle Needle Valve from the Throttle Master 'L Series' combines durability and performance. Featuring an angle pattern design with an L Series Needle, this valve offers PTFE sealing for extended life, low torque on/off operation, and exceptional chemical resistance. With integrally designed panel mounting and no need for fasteners, this valve ensures easy installation and maintenance. Compliant with NSF Std 14 & 61 for CPVC material, this needle valve is ideal for industries requiring high purity and corrosion resistance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

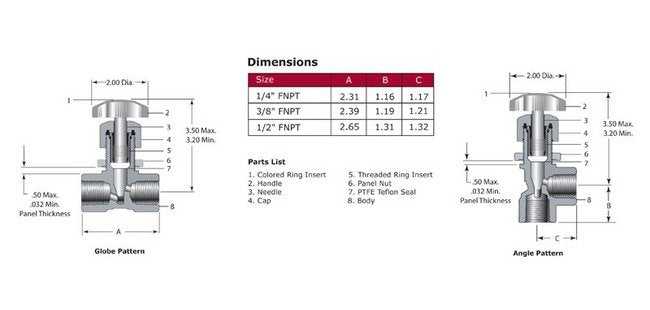

Materials Of Construction Materials Of Construction
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

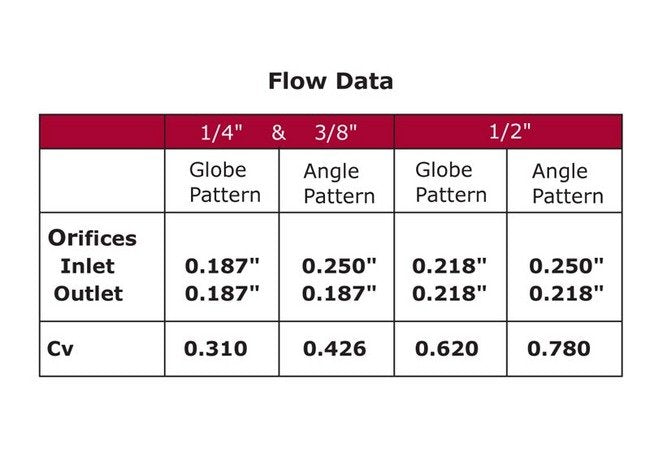

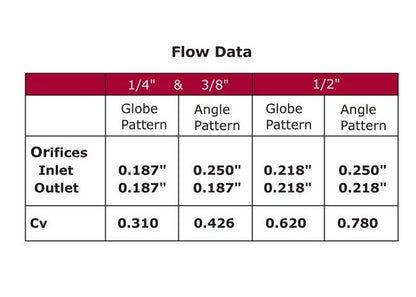

Specifications Cv Factor
0.426
Specifications Inlet X Outlet
1/4" Female NPT
Specifications List Price
94.95 USD
Specifications Materials
CPVC
Specifications Seal
PTFE
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Angle Pattern, L Series Needle
