CPVC Double Filter Tube
CPVC Double Filter Tube
SKU:FIL-496826
Reliable CPVC Double Filter Tube for corrosive solutions. High filtration rate, durable construction, and versatile design. Ideal for metal finishing, labs, and chemical processes.
Regular price
$2,315.00
Regular price
Sale price
$2,315.00
Unit price
per
Initiate Order
CPVC Double Filter Tube
$2,315.00
Quantity: 1
Claim Your Seller Account
CPVC Double Filter Tube
$2,315.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

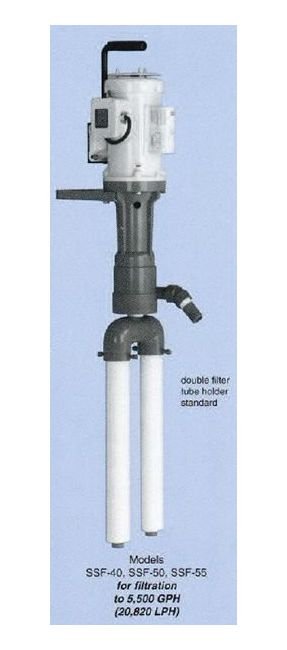

The CPVC Double Filter Tube by Sethco is the ideal solution for filtering, agitating, and treating corrosive solutions in metal finishing shops, laboratories, and chemical processes. With a maximum filtration rate of 5000 gph and corrosion-resistant CPVC construction, this filter tube ensures durability and high performance. It features a sealless, self-priming design, portable and easy maintenance, making it a versatile and reliable option for institutional and government procurement needs. Warranty included.
Product Specifications
Specifications Effective Filtration

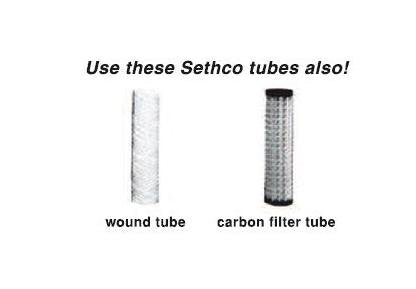

Sethco suction filter systems are equipped with easily inserted. appropriately sized Sethco depth filter tubes. These are precision wound polypropylene fiber over a polypropylene perforated supporting core, forming hundreds of funnel shaped tunnels. Each layer of fiber serves as its own filter screen. The close winding pattern (density) determines the size of the particle retention. Filter tubes are available with solids handling retention values of 50 down to 0.5 micron. Sub-micron filter tubes are also available.Depth filtration area over the entire thickness of the Sethco No. 5 filter tube is 2.0 sq. ft.; of the No. 10 filter tube is 3.5 sq. ft.; of the No. 20 filter tube is 7.0 sq. ft.; and of the No. 30 filter tube is 10.5 sq. ft. Simultaneous carbon treatment and filtration to 10 micron can be achieved by using Sethco carbon/filter tubes.
Specifications Features
Sealless, bearing free designCan run dry without pump damagePortableSelf PrimingFiltration rates to 5,500 GPH (20,820 LPH)Corrosion resistant CPVC constructionEasy to install and maintainQuick filter changeoverReusable filter media availableEight models to choose fromCompact design requires minimum amount of in-tank space while providing high turnover rate.In-tank design insures leakproof operation. No hoses, connections, or components are outside the tank.Easy installation and filter changeover. Attaches to tank flange with "C" clamp. Each suction filter is provided with mounting panel, clamps, and filter media for immediate start-up.High flow rate, low cost. The Sethco SSF series filter systems are high quality, continuous duty units at a surprisingly low price.Sealless, self-priming, bearing free pump can run dry with no damage. CPVC construction is suitable for temperatures to 200 °F (93 °C).Choice of filter media. Choose reusable spiral wrap media, standard wound cartridges, or carbon filter tubes.Versatile suction filter system provides filtration, carbon treatment, tank agitation, and tank transfer.Only one moving part makes these filter systems virtually maintenance free. In the unlikely event that service is necessary, Sethco Sealless Suction Filters are field repairable and do not have to be returned to the factory for repair.
Specifications Frequency
60/50 Hz
Specifications Manufacturer
Sethco
Specifications Materials Of Construction
The high strength qualities and rigidity of CPVC make the SSF Series suction filter systems extremely rugged, yet wear and impact resistant, and capable of handling the roughest of corrosive liquids and sensitive solutions at 200 ºF (93 ºC). Wetted parts are CPVC so there is no metal contact with liquid.
Specifications Max Filtration Rate
5000 gph
Specifications Max Immersion Level Dimensions
10.5 "
Specifications Max Pressure
39 ft
Specifications Min Immersion Level Dimensions
6 "
Specifications Model
SSF-50A
Specifications Motors
Sethco "SSF" electric motors are all totally enclosed, fan cooled. U.L. recognized, CSA approved and continuous duty rated. The motors are protected by special corrosion resistant paints and insulated windings. In addition, they have a corrosion resistant drip cover. The motors are equipped with over-sized, double sealed ball bearings, and have a one-piece shaft to prevent impeller whip and assure long life. All 1/6 horsepower and larger motors are equipped with a lip seal where the stainless steel shaft enters the motor to help prevent vapors and liquid from entering.
Specifications Motor Power
3/4 hp
Specifications Net Weight
47 lbs
Specifications Phase
Single (Standard) | Three
Specifications Price
2315.00 USD
Specifications Standard Filter Tube
(2) MSC15P20P
Specifications Voltage
(Standard) 115V 1PH V | 230/460V 3PH V | 230V 1PH V
Specifications Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Sethco or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations. Since the policy of Sethco is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligations to previous or future customers.
