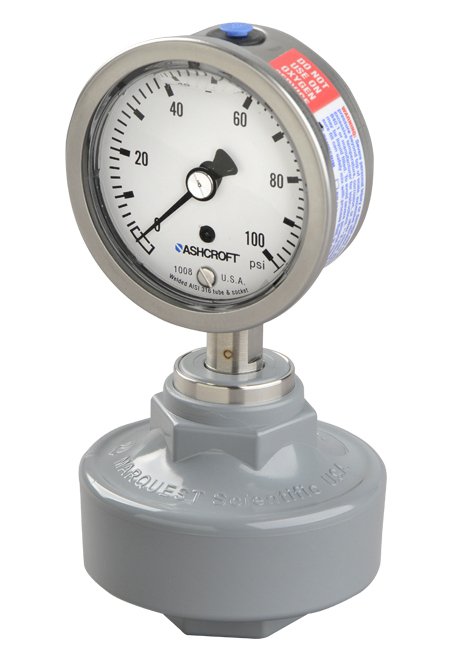

CPVC Gauge Isolator with All Stainless 2.5' Ashcroft Gauge
CPVC Gauge Isolator with All Stainless 2.5' Ashcroft Gauge
SKU:GAU-adefd6
Precisely isolate and protect pressure sensing instruments with our CPVC Gauge Isolator & All Stainless Ashcroft Gauge.
Regular price
$328.50
Regular price
Sale price
$328.50
Unit price
per
Initiate Order
CPVC Gauge Isolator with All Stainless 2.5' Ashcroft Gauge
$328.50
Quantity: 1
Claim Your Seller Account
CPVC Gauge Isolator with All Stainless 2.5' Ashcroft Gauge
$328.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CPVC Gauge Isolator with an EPDM Diaphragm and All Stainless Ashcroft 2.5' Gauge ensures precise pressure isolation and protection for pressure sensing instruments. Featuring an impermeable EPDM diaphragm for accurate pressure transmission, reinforced instrument connection, and compressive spoke ribs for stress transfer. This isolator meets ANSI Schedule 120 standards, offers self-venting internal shape for easy filling, and integrates a replaceable diaphragm for maintenance ease. With a low profile design to eliminate dead volume, this durable isolator comes with a 3-year limited warranty.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE®, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-60 PSI, All Stainless
Specifications List Price
328.5 USD
Specifications Materials
CPVC, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
