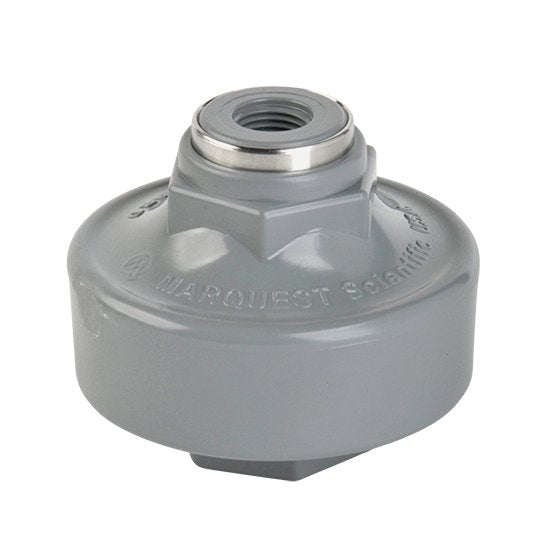

CPVC Gauge Isolator with EPDM Diaphragm, Standard 2.5" Gauge
CPVC Gauge Isolator with EPDM Diaphragm, Standard 2.5" Gauge
SKU:GAU-10046b
Protect pressure instruments with precision using our CPVC Gauge Isolator with EPDM Diaphragm.
Regular price
$176.50
Regular price
Sale price
$176.50
Unit price
per
Initiate Order
CPVC Gauge Isolator with EPDM Diaphragm, Standard 2.5" Gauge
$176.50
Quantity: 1
Claim Your Seller Account
CPVC Gauge Isolator with EPDM Diaphragm, Standard 2.5" Gauge
$176.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CPVC Gauge Isolator with EPDM Diaphragm features a 1/2" Female NPT Inlet Connection for easy installation. This isolator protects and accurately isolates pressure sensing instruments with its impermeable EPDM diaphragm. Its low profile design eliminates dead volume, ensuring optimal pressure containment. With a convoluted diaphragm for accurate pressure transmission, this isolator meets or exceeds ANSI Schedule 120 standards. The reinforced instrument connection and field-serviceable design make maintenance hassle-free.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-30 in-Hg, Brass, Blk Pntd Steel
Specifications List Price
176.50 USD
Specifications Materials
CPVC, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
