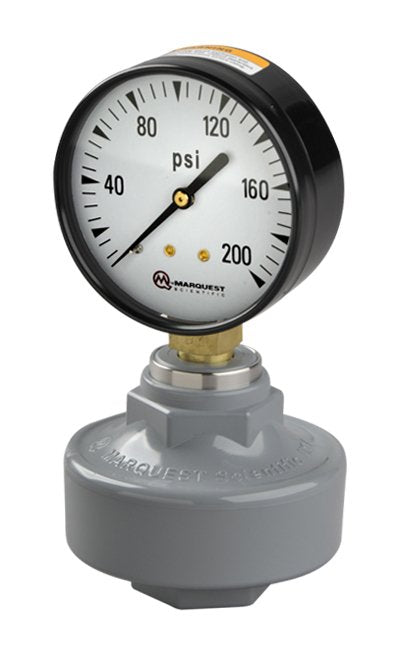

CPVC Gauge Isolator with PTFE Diaphragm & 2.5" Economy Gauge
CPVC Gauge Isolator with PTFE Diaphragm & 2.5" Economy Gauge
SKU:GAU-612e55
Protect & isolate pressure instruments w/ CPVC & PTFE. Accurate, durable, & easy maintenance.
Regular price
$153.95
Regular price
Sale price
$153.95
Unit price
per
Initiate Order
CPVC Gauge Isolator with PTFE Diaphragm & 2.5" Economy Gauge
$153.95
Quantity: 1
Claim Your Seller Account
CPVC Gauge Isolator with PTFE Diaphragm & 2.5" Economy Gauge
$153.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CPVC Gauge Isolator with PTFE Diaphragm and included 2.5" Economy Gauge is designed to protect and isolate pressure sensing instruments effectively. Featuring an impermeable PTFE diaphragm for accurate pressure transmission, stainless steel reinforced instrument connection, and a reinforced process connection for durability. This isolator meets ANSI Schedule 120 wall thickness standards and features a low profile design to eliminate dead volume. With a self-venting internal shape for easy filling, integral wrench provisions for field service, and a replaceable diaphragm, this isolator is a reliable solution for pressure management needs.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0

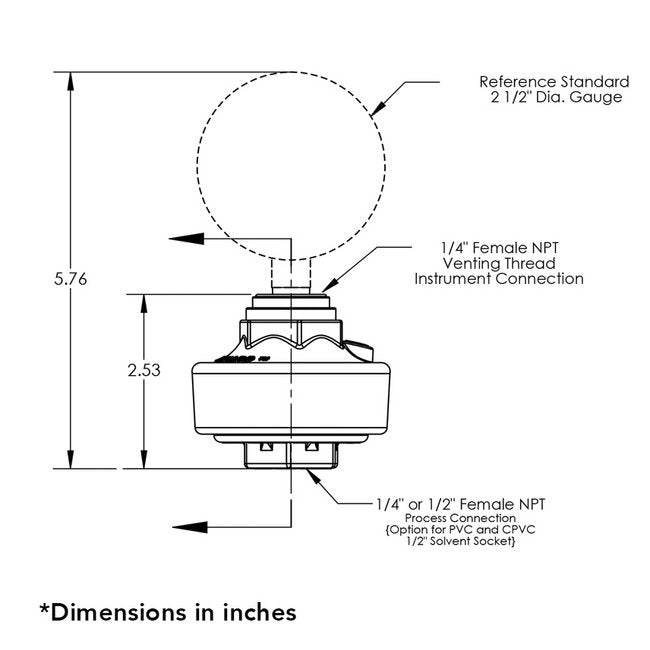

The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-160 PSI, Brass, Blk Pntd Steel
Specifications List Price
153.95 USD
Specifications Materials
CPVC, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
